Plain / Cylindrical Gages

1.602 & 1.605 PIN PLUG GAGE GO NO GO 1.5938 +.0082 1 19/32 40.767 1.6020 1.6050 - MB4097AP1

.427 & .447 PIN PLUG GAGE GO NO GO .4375 +.0095 OVERSIZE 7/16 11 mm .4270 .4470 - MB4100AP1

DUNDICK

1.300 & 1.303 CL X PIN PLUG GAGE GO NO GO 1.2969 +.0031 1 19/64 33 1.3000 1.3030 - MB4106AP1

1.6020 & 1.6040 PIN PLUG GAGE GO NO GO 1.5938 +.0082 1 19/32 40.742 1.602 1.604 - MB4105AP1

1.678 & 1.682 CL XX PIN PLUG GAGE GO NO GO 1.6875 -.0055 1 11/16 42.723 1.6780 1.6820 - MB4103AP1

1.423 & 1.425 PIN PLUG GAGE GO NO GO 1.4219 +.0011 1 27/64 36 mm 1.4230 1.4250 - MB4090AP1

1.422 & 1.425 PIN PLUG GAGE GO NO GO 1.4219 +.0001 1 27/64 36 mm 1.4220 1.4250 - MB4086AP1

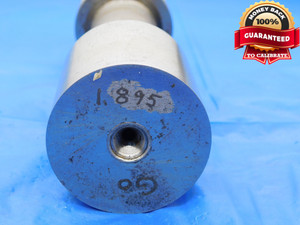

1.895 & 1.905 PIN PLUG GAGE GO NO GO 1.9063 -.0013 1 29/32 48 mm 1.8950 1.9050 - MB4087AP1

HEMCO

1.998 & 2.002 CL Z PIN PLUG GAGE GO NO GO 2.0000 -.0020 2.0 51 mm 1.9980 2.0020 - MB4089AP1

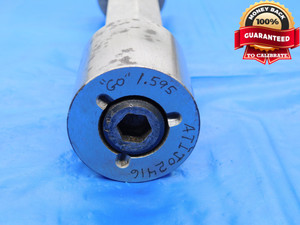

1.593 & 1.595 PIN PLUG GAGE GO NO GO 1.5938 -.0008 1 19/32 40.462 1.5930 1.5950 - MB4096AP1

1.5409 & 1.5427 PIN PLUG GAGE GO NO GO 1.5313 +.0096 OVERSIZE 1 17/32 39 mm - MB4095AP1

DUNDICK

1.417 & 1.420 CL XX PIN PLUG GAGE GO NO GO 1.4219 -.0019 1 27/64 36 1.4170 1.4200 - MB4088AP1
