Thread Gages

HANSON WHITNEY

1 1/4 7 NC 3 LEFT HAND THREAD RING GAGE 1.25 GO ONLY P.D. = 1.1572 UNC-3 3A L.H. - DW42963AE6

YOU ARE PURCHASING THE PICTURED LEFT HAND THREAD RING GAGE.SOLD BY M & J TOOLING LLCDAYTON, OHIO

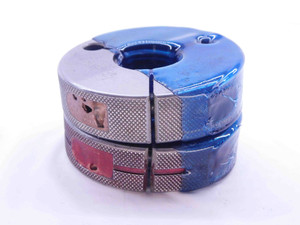

1" 12 N 2 THREAD RING GAGES 1.0 1.00 1.000 GO NO GO P.D.'S = .9459 & .9403 UN-2 - DW42962AE6

YOU ARE PURCHASING THE PICTURED RIGHT HAND THREAD RING GAGES.SOLD BY M & J TOOLING LLCDAYTON, OHIO<

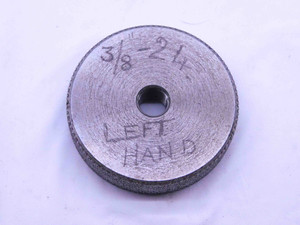

SHOP MADE 3/8 24 SOLID LEFT HAND THREAD RING GAGE .375 .3750 L.H. INSPECTION - DW42961AE6

YOU ARE PURCHASING THE PICTURED SOLID LEFT HAND SHOP MADE THREAD RING GAGE(S).SOLD BY M & J TOOLING LLCDAYTON, OHI

SWANSON

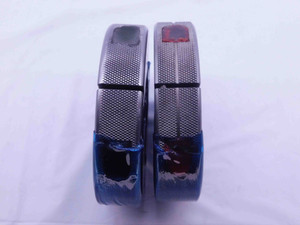

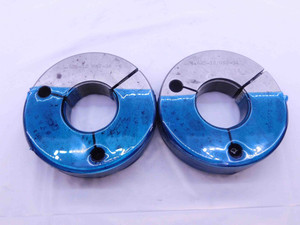

1 5/8 12 UNJ 3A THREAD RING GAGES 1.625 1.6250 GO NO GO P.D.'S = 1.5709 & 1.5665 - DW42960OB6

YOU ARE PURCHASING THE PICTURED RIGHT HAND THREAD RING GAGES.SOLD BY M & J TOOLING LLCDAYTON, OHIO<

6 32 UNC 2B STI HELICOIL SPECIAL THREAD PLUG GAGE #6 .138 GO NO GO = .1503 .1611 - DW42959CJ5

YOU ARE PURCHASING THE PICTURED RIGHT HAND STI HELICOIL SPECIAL THREAD PLUG GAGE.SOLD BY M & J TOOLING LLCDAYTON, OHIO<

PRATT & WHITNEY

10 24 UNC 3A SET THREAD PLUG GAGE #10 .190 .1900 GO NO GO P.D.'S = .1629 & .1604 - DW42958CJ5

YOU ARE PURCHASING THE PICTURED RIGHT HAND SET THREAD PLUG GAGE.THESE GAGES ARE USED FOR CALIBRATING THREAD R

PRATT & WHITNEY

.214 36 THREAD PLUG GAGE .2140 GO NO GO P.D.'S = .1920 & .1960 INSPECTION CHECK - DW42957CJ5

YOU ARE PURCHASING THE PICTURED RIGHT HAND THREAD PLUG GAGE.SOLD BY M & J TOOLING LLCDAYTON, OHIO

1 1/4 18 NF 2 THREAD PLUG GAGE 1.25 1.250 1.2500 NO GO ONLY P.D. = 1.2201 UNF-2 - DW42956CJ5

YOU ARE PURCHASING THE PICTURED RIGHT HAND THREAD PLUG GAGE.SOLD BY M & J TOOLING LLCDAYTON, OHIO

PRATT & WHITNEY

.214 36 NS 3 THREAD PLUG GAGE .2140 GO NO GO P.D.'S = .1920 & .1960 INSPECTION - DW42955CJ5

YOU ARE PURCHASING THE PICTURED RIGHT HAND THREAD PLUG GAGE.SOLD BY M & J TOOLING LLCDAYTON, OHIO

SCC

4 40 UNC 2B STI HELICOIL THREAD PLUG GAGE #4 .112 GO NO GO PD'S = .1283 & .1308 - DW42954CJ5

YOU ARE PURCHASING THE PICTURED RIGHT HAND STI HELICOIL THREAD PLUG GAGE.SOLD BY M & J TOOLING LLCDAYTON, OHIO

7/16 28 UNEF 2B SPECIAL THREAD PLUG GAGE .4375 NO GO ONLY P.D. = .4204 - DW42952CJ5

YOU ARE PURCHASING THE PICTURED RIGHT HAND SPECIAL THREAD PLUG GAGE.SOLD BY M & J TOOLING LLCDAYTON, OHIO

SHOP MADE 5/16 40 THREAD PLUG GAGE .3125 5/16"-40 GO AND NO GO INSPECTION CHECK - DW42951CJ5

YOU ARE PURCHASING THE PICTURED RIGHT HAND SHOP MADE THREAD PLUG GAGE.SOLD BY M & J TOOLING LLCDAYTON, OHIO
