Thread Gages

PRATT & WHITNEY

9/16 20 NS 3 THREAD PLUG GAGE .5625 GO NO GO P.D.'S = .5300 & .5330 INSPECTION - DW42950CJ5

YOU ARE PURCHASING THE PICTURED RIGHT HAND THREAD PLUG GAGE.SOLD BY M & J TOOLING LLCDAYTON, OHIO

PRATT & WHITNEY

.6388 32 THREAD PLUG GAGE GO NO GO P.D.'S = .6185 & .6215 .6388"-32 INSPECTION - DW42949CJ5

YOU ARE PURCHASING THE PICTURED RIGHT HAND THREAD PLUG GAGE.SOLD BY M & J TOOLING LLCDAYTON, OHIO

HELI-COIL

7/8 14 UNF 3B STI HELICOIL THREAD PLUG GAGE .875 GO NO GO P.D.'S = .9214 & .9257 - DW42948CJ5

YOU ARE PURCHASING THE PICTURED RIGHT HAND STI HELICOIL THREAD PLUG GAGE.SOLD BY M & J TOOLING LLCDAYTON, OHIO

VERMONT GAGE

M28 X 1 6H VERMONT THREAD PLUG GAGE 28 1.0 GO NO GO P.D.'S = 27.350 & 27.520 - DW42947OB6

YOU ARE PURCHASING THE PICTURED RIGHT HAND THREAD PLUG GAGE.SOLD BY M & J TOOLING LLCDAYTON, OHIO

G.A. CO.

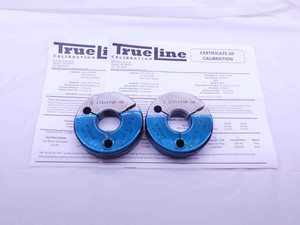

CERTIFIED 1 1/4 16 UN 3A THREAD RING GAGES 1.25 GO NO GO PD'S = 1.2094 & 1.2056 - DW42946TLC

YOU ARE PURCHASING THE PICTURED RIGHT HAND CERTIFIED THREAD RING GAGES.SOLD BY M & J TOOLING LLCDAYTON, OHIO

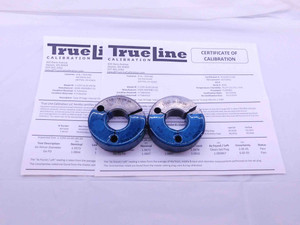

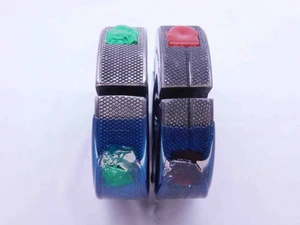

CERTIFIED 1 1/8 16 UN 3A THREAD RING GAGES 1.125 GO NO GO PD'S = 1.0844 & 1.0807 - DW42945TLC

YOU ARE PURCHASING THE PICTURED RIGHT HAND CERTIFIED THREAD RING GAGES.SOLD BY M & J TOOLING LLCDAYTON, OHIO

BATH

CERTIFIED 1/2 24 UNS 2A LEFT HAND THREAD RING GAGES .5 GO NO GO = .4717 & .4678 - DW42944TLC

YOU ARE PURCHASING THE PICTURED CERTIFIED LEFT HAND THREAD RING GAGES.SOLD BY M & J TOOLING LLCDAYTON, OHIO<

VERMONT GAGE

CERTIFIED 1/2 24 UNS 2A LEFT HAND SET THREAD PLUG GAGE .5 GO NO GO = .4717 .4678 - DW42943TLC

YOU ARE PURCHASING THE PICTURED CERTIFIED LEFT HAND SET THREAD PLUG GAGE.THESE GAGES ARE USED FOR CALIBRATING

HEMCO

1/4 18 NPSF PIPE THREAD PLUG GAGE .25 .250 .2500 GO ONLY P.D. = .4852 2B CHECK - DW42942BY6

YOU ARE PURCHASING THE PICTURED RIGHT HAND PIPE THREAD PLUG GAGE.SOLD BY M & J TOOLING LLCDAYTON, OHIO

HEMCO / HANSON WHITNEY

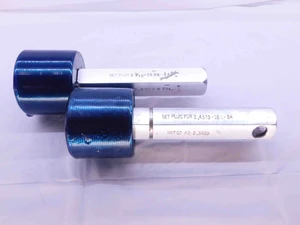

2 7/16 16 N 3A SET THREAD PLUG GAGE 2.4375 GO NO GO P.D.'S = 2.3969 & 2.3928 - DW42941LVR

YOU ARE PURCHASING THE PICTURED RIGHT HAND SET THREAD PLUG GAGE.THESE GAGES ARE USED FOR CALIBRATING THREAD R

GF GAGE

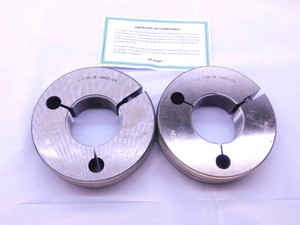

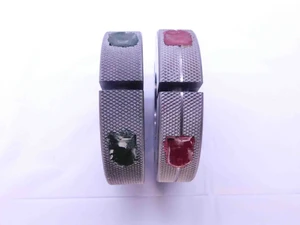

NEW 1 7/16 18 UNEF 2A THREAD RING GAGES 1.4375 GO NO GO P.D.'S = 1.3999 & 1.3949 - DW42940GFG

YOU ARE PURCHASING THE PICTURED RIGHT HAND THREAD RING GAGES.SOLD BY M & J TOOLING LLCDAYTON, OHIO<

LONE STAR

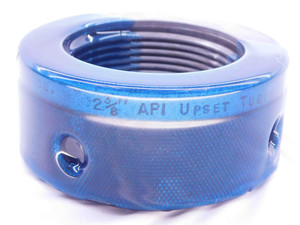

2 3/8 8 UP TBG API 5B PIPE THREAD RING GAGE 2.375 EXTERNAL UPSET TUBING EUE - DW42939BR6

YOU ARE PURCHASING THE PICTURED RIGHT HAND API 5B PIPE THREAD RING GAGE.SOLD BY M & J TOOLING LLCDAYTON, OHIO
