SGS 1/16 Diam 3/16 LOC, 1/8 Shank Dia 1-1/2 OAL, 4 Flute Carbide Square End Mill
SGS
$19.99
$16.99
Write a Review
SGS
SGS 1/16 Diam 3/16 LOC, 1/8 Shank Dia 1-1/2 OAL, 4 Flute Carbide Square End Mill

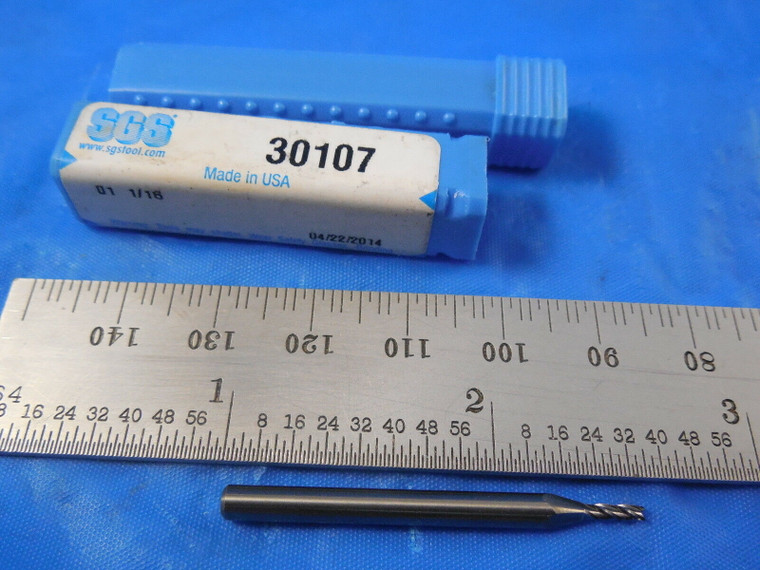

YOU ARE PURCHASING THE PICTURED END MILL.
IT IS NEW.
SOLD BY M & J TOOLING LLC.
DAYTON, OH
PRODUCT SPECIFICATIONS AND OR LABELING:
| Mill Diameter (Inch) | 1/16 |
| Mill Diameter (Decimal Inch) | 0.0625 |
| Number of Flutes | 4 |
| Length of Cut (Inch) | 3/16 |
| Length of Cut (Decimal Inch) | 0.1875 |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Shank Diameter (Inch) | 1/8 |
| Single or Double End | Single |
| Overall Length (Inch) | 1-1/2 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Length Type | Regular |
| Helix Angle | 30.00 |
| Mill Diameter Tolerance (Decimal Inch) | +0.000/-0.002 |
| Material Grade | Micrograin |
| Chipbreaker | No |
| Extended Reach | No |
| Shank Diameter Tolerance (Decimal Inch) | +0.00000/-0.00032 |
| Series/List | 1 |
