SGS 3/32 Dia 3/16 LOC 4 Flute Solid Carbide Ball End Mill Double Ended 1 1/2 OAL
SGS
$23.99
$20.39
Write a Review
SGS
SGS 3/32 Dia 3/16 LOC 4 Flute Solid Carbide Ball End Mill Double Ended 1 1/2 OAL

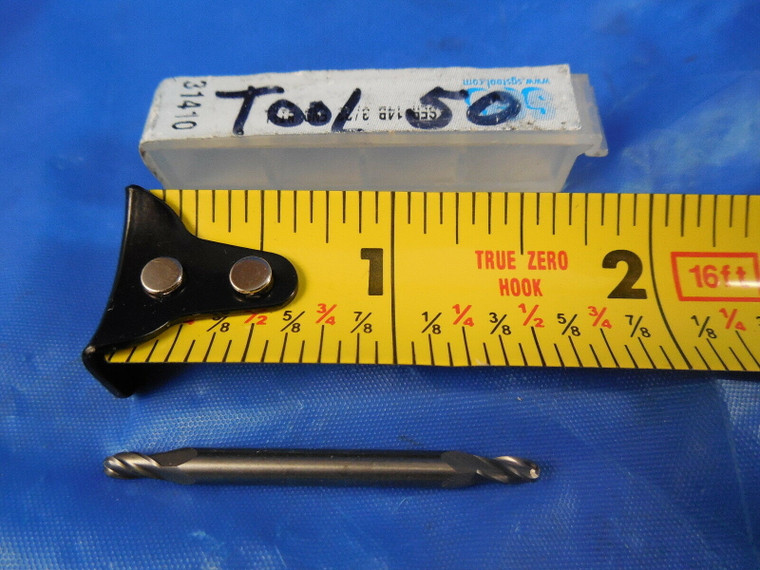

YOU ARE PURCHASING THE PICTURED END MILL.
IT IS NEW.
SOLD BY M & J TOOLING LLC.
DAYTON, OH
PRODUCT SPECIFICATIONS AND / OR LABELING:
| Mill Diameter (Inch) | 3/32 |
| Mill Diameter (Decimal Inch) | 0.0938 |
| Number of Flutes | 4 |
| Length of Cut (Inch) | 3/16 |
| Length of Cut (Decimal Inch) | 0.1875 |
| Material | Solid Carbide |
| Overall Length (Inch) | 1-1/2 |
| Shank Diameter (Inch) | 1/8 |
| Finish/Coating | Uncoated |
| Single or Double End | Double |
| Extended Reach | No |
| Material Grade | Micrograin |
| Helix Angle | 30.00 |
| Mill Diameter Tolerance (Decimal Inch) | +0.000/-0.002 |
| Flute Type | Spiral |
| Shank Diameter Tolerance (Decimal Inch) | +0.00000/-0.00032 |
| Length Type | Stub |
| Series/List | 14B |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
