SGS 30010 5/16 DIA. 5/16 SHANK TI-NAMITE A COAT 4 FLUTE CARBIDE SQUARE END MILL
Sale

SGS 30010 5/16 DIA. 5/16 SHANK TI-NAMITE A COAT 4 FLUTE CARBIDE SQUARE END MILL

SKU:
TM-JA0719
$23.99 $20.39
Condition:
New
Current Stock:
2
Adding to cart… The item has been added
Description

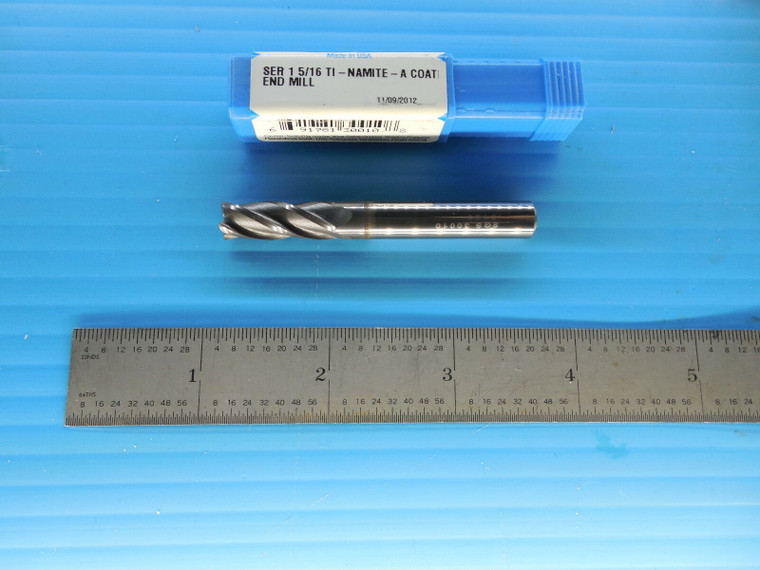

YOU ARE PURCHASING THE PICTURED END MILL.

IT IS NEW.

SOLD BY M & J TOOLING LLC
DAYTON, OH

PRODUCT SPECIFICATIONS:

Mill Diameter (Inch)
5/16
Mill Diameter (Decimal Inch)
0.3125
Number of Flutes
4
Length of Cut (Inch)
13/16
Length of Cut (Decimal Inch)
0.8125
Material
Solid Carbide
Finish/Coating
AlTiN
Shank Diameter (Inch)
5/16
Single or Double End
Single
Overall Length (Inch)
2-1/2
Center Cutting
Center Cutting
Flute Direction
Right Hand
Cutting Direction
Right Hand
Flute Type
Spiral
Length Type
Regular
Helix Angle
30.00
Mill Diameter Tolerance (Decimal Inch)
+0.000/-0.002
Material Grade
Micrograin
Chipbreaker
No
Extended Reach
No
Shank Diameter Tolerance (Decimal Inch)
-0.0001/-0.0004
Series/List
1



SHIPPING CHARGES / COMBINED SHIPPING POLLICY:
WE CHARGE $9.95 FOR THE FIRST ITEM THAT IS SHIPPED. THEN FOR EACH ADDTIONAL ITEM THAT YOU PURCHASE, THE COST DROPS DOWN TO $3.00 EACH.

PLEASE SEE MY OTHER LISTINGS FOR MORE GREAT VALUES!

I USUALLY SHIP (95%) OF MY LISTINGS SAME DAY IF PAID FOR BY 3:00 P.M. EST.

I WILL COMBINE SHIPPING WHENEVER POSSIBLE.

I WILL SHIP WORLDWIDE.

THANK YOU!

LOCATION: 11-3-B-8
