Pipe Ring Gages

BUDGET 1" 11 1/2 ANPT 6 STEP PIPE THREAD RING GAGE 1.0 1.00 1.000 A.N.P.T. - DW27819RD

GTD

3/4 14 AWWA PIPE THREAD RING GAGE .75 GO NO GO PD'S = 1.213 & 1.207 WATER WORKS - DW27797RD

NEW G 1" 11 BSPP SOLID PIPE THREAD RING GAGE 1.0 GO NO GO PD'S = 31.770 & 31.590 - MS6984LZ

NEW G 3/4 14 BSPP SOLID PIPE THREAD RING GAGE .75 GO NO GO PD'S = 25.279 25.137 - MS6983LZ

NEW G 1/16 28 BSPP SOLID PIPE THREAD RING GAGE .0625 GO NO GO PD'S = 7.142 7.035 - MS6980LZ

NEW G 1/4 19 BSPP SOLID PIPE THREAD RING GAGE .25 GO NOGO PD'S = 12.301 & 12.176 - MS6982LZ

NEW G 5/8 14 BSPP SOLID PIPE THREAD RING GAGE .625 GO NO GO PD'S = 21.749 21.607 - MS6979LZ

NEW G 1/8 28 BSPP SOLID PIPE THREAD RING GAGE .125 GO NO GO PD'S = 9.147 & 9.040 - MS6981LZ

NEW G 1/2 14 BSPP SOLID PIPE THREAD RING GAGE .5 GO NO GO PD'S = 19.793 & 19.651 - MS6978LZ

GSG

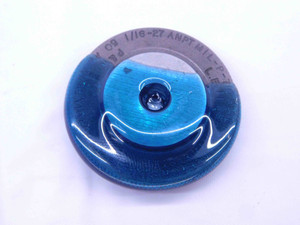

1/16 27 NPT L2 PIPE THREAD RING GAGE .0625 N.P.T. NATIONAL TAPER ANPT CHECK - DW27496LVR

GSG

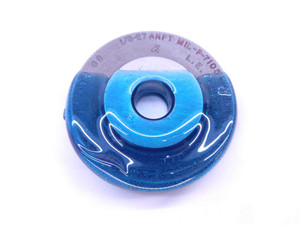

1/8 27 NPT L2 PIPE THREAD RING GAGE .125 .1250 N.P.T. NATIONAL TAPER ANPT - DW27421LVR

3/8 18 NPT 6 STEP PIPE THREAD RING GAGE .375 .3750 N.P.T. ANPT CREST CHECK - DW27201AP4
