BATH

BATH

5/8 24 NS SPECIAL THREAD PLUG GAGE .625 .6250 GO ONLY P.D. = .5991 INSPECTION - DW37767SLW

BATH

5/8 24 NS SPECIAL THREAD PLUG GAGE .625 GO ONLY P.D. = .5991 INSPECTION CHECK - DW37690SLW

BATH

5/8 32 UN 2A SET THREAD PLUG GAGE .625 .6250 GO NO GO P.D.'S = .6036 & .6000 - DW30259LVR

BATH

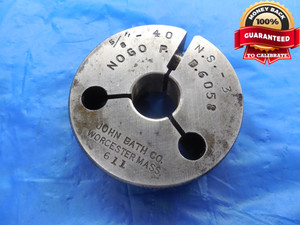

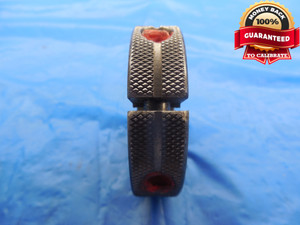

5/8 40 NS 3 THREAD RING GAGE .625 NO GO ONLY P.D. = .6058 .6250 INSPECTION CHECK - DW10332RD

BATH

5/8 8 ACME SET THREAD PLUG GAGE .625 .6250 NO GO ONLY P.D. = .5525 INSPECTION - DW16025LVR

BATH

59/64 32 NS 2B OR 3B THREAD PLUG GAGE .921875 GO ONLY P.D. = .9016 UNS CHECK - DW8017BU

BATH

6 1/4 10 UNS 2B THREAD PLUG GAGE 6.25 GO ONLY P.D. = 6.1850 NS-2B UN N 6.250

BATH

6 56 NS 3 THREAD RING GAGE #6 .138 .1380 NO GO ONLY P.D. = .1247 INSPECTION - DW30777BL4

BATH

7" 10 UNS 2B THREAD PLUG GAGE 7.0 GO NO GO P.D.'S = 6.9350 & 6.9448 UN NS N-2B

BATH

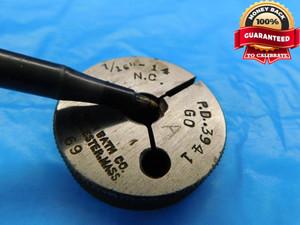

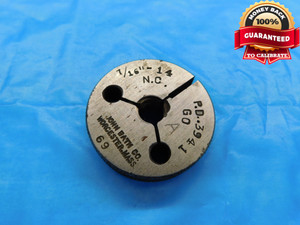

7/16 14 NC SPECIAL THREAD RING GAGE .4375 GO ONLY PD = .3941 INSPECTION CHECK - DW19043RD

BATH

7/8 14 NF 3 LEFT HAND THREAD RING GAGE .875 NO GO ONLY P.D. = .8250 UNF-3 L.H. - DW30808LVR

BATH

7/8 14 NF 3 THREAD PLUG GAGE .875 .8750 GO NO GO P.D.'S = .8286 & .8322 UNF-3 - DW12989RDRL
