ATLAS

ATLAS

7/16 20 UNS 2A SPECIAL SET THREAD PLUG GAGE .4375 NO GO ONLY P.D. = .3990 - DW22871RD

ATLAS

7/16 24 NS 2 THREAD PLUG GAGE .4375 GO NO GO P.D.'S = .4104 & .4140 INSPECTION - DW15853LVR

ATLAS

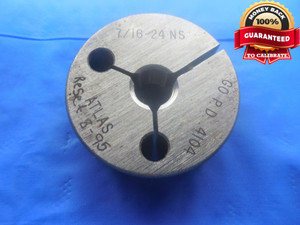

7/16 24 NS THREAD RING GAGE .4375 GO ONLY P.D. = .4104 UNS 7/16"-24 INSPECTION - DW7225K6

ATLAS

7/16 24 UNS 2A AFTER PLATE SET THREAD PLUG GAGE .4375 NO GO ONLY P.D. = .4055

ATLAS

7/16 24 UNS 2A SET THREAD PLUG GAGE .4375 GO NO GO P.D.'S= .4104 & .4055 7/16-24

ATLAS

7/16 28 3A 2A SET THREAD PLUG GAGE .4375 GO NO GO P.D.'S = .4143 & .4096 7/16-28

ATLAS

7/8 14 UNF 2A SET THREAD PLUG GAGE .875 GO ONLY P.D. = .8286 NF-2A SETTING CHECK

ATLAS

7/8 16 UN 2A THREAD RING GAGES .875 .8750 GO NO GO P.D.'S = .8329 & .8280 CHECK - DW34109CT4

ATLAS

7/8 18 NS 2 THREAD PLUG GAGE .875 NO GO ONLY P.D. = .8438 7/8-18 NS-2 QUALITY

ATLAS

7/8 18 UN 2A SET THREAD PLUG GAGE .875 .8750 GO ONLY P.D. = .8375 INSPECTION - DW32797CT4

ATLAS

7/8 20 UNEF 3B THREAD PLUG GAGE .875 NO GO ONLY P.D. = .8468 QUALITY TOOLING

ATLAS

7/8 27 NS THREAD PLUG GAGE .875 .8750 GO NO GO P.D.'S = .852 & .854 INSPECTION - DW23947RD
