ATLAS

ATLAS

9/32 32 THREAD RING GAGE .28125 .2812 GO ONLY P.D. = .2570 9/32"-32 CHECK - DW25487BF3

ATLAS

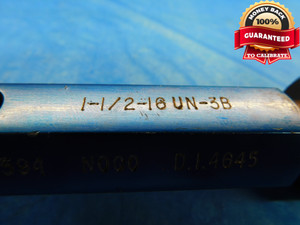

BUDGET 1 1/2 16 UN 3B THREAD PLUG GAGE 1.5 GO NO GO P.D.'S = 1.4594 & 1.4645 - DW14388AV1

ATLAS

BUDGET 1 1/8 16 NS SET THREAD PLUG GAGE 1.125 GO NO GO P.D.'S = 1.0804 & 1.0764 - DW18525RD

ATLAS

BUDGET 7/16 24 NS 2 THREAD RING GAGES .4375 GO NO GO P.D.'S = .4104 & .4064 - DW15496LVR

ATLAS

CERTIFIED 1 1/8 12 NF 2 THREAD RING GAGES 1.125 GO NO GO PDS= 1.0709 & 1.0669 - DW25283BE3

ATLAS

CERTIFIED 1 9/16 18 UNEF 2A THREAD RING GAGES 1.5625 GO NO GO = 1.5249 & 1.5200 - DW29579TLC

ATLAS

CERTIFIED 1/4 20 UNC 2A PREPLATE SET THREAD PLUG GAGE .25 GO NO GO = .2144 .2115 - DW35711TLC

ATLAS

CERTIFIED 11/16 20 UN 2A SET THREAD PLUG GAGE .6875 GO NO GO PDS= .6537 & .6494 - DW28587TLC

ATLAS

CERTIFIED 13/16 18 UNS 2A SET THREAD PLUG GAGE .8125 GO NO GO = .7750 & .7704 - DW28205TLC

ATLAS

CERTIFIED 5/8 24 UNEF 2A SET THREAD PLUG GAGE .625 GO NO GO PDS= .5967 & .5927 - DW35088TLC

ATLAS

CERTIFIED M22 X 1.5 6h METRIC SET THREAD PLUG GAGE 22 GO ONLY P.D. = 21.026 - DW25019LVR

ATLAS

M10 X 1 6g PREPLATE SET THREAD PLUG GAGE 10 1.0 GO NO GO P.D.'S = 9.260 & 9.149 - DW33888CT4
