DETROIT

DETROIT

10 32 NF 2 THREAD RING GAGES #10 .190 GO NO GO P.D.'S = .1697 & .1670 INSPECTION

DETROIT

12 28 NF 3 THREAD PLUG GAGE #12 .216 GO NO GO P.D.'S = .1928 & .1950 UNF-3 CHECK - NP0071BU

DETROIT

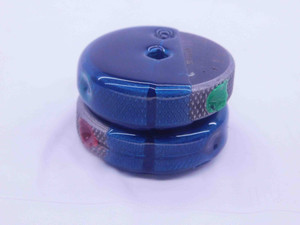

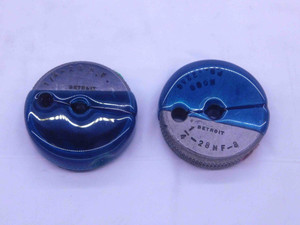

1/4 28 NF 3 THREAD RING GAGES .25 .250 GO NO GO P.D.'S = .2268 & .2246 UNF-3 - SD0908

DETROIT

5/16 18 NC Y THREAD PLUG GAGE .3125 GO ONLY P.D. = .2754 UNC-Y 2B OR 3B NC-2 3 - SD3808

DETROIT

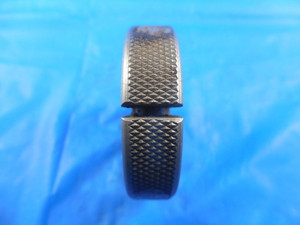

3/8 16 NC SPECIAL THREAD RING GAGE .375 GO ONLY P.D. = .3335 INSPECTION

DETROIT

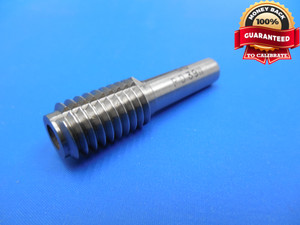

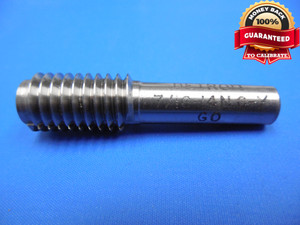

7/16 14 NC 2B 3B THREAD PLUG GAGE .4375 GO ONLY P.D. = .3911 TAPERLOCK UNC

DETROIT

7/16 14 NC 5 THREAD RING GAGES .4375 GO NO GO P.D.'S = .3980 & .3955 QUALITY

DETROIT

7/16 27 NS 2 THREAD RING GAGE .4375 GO ONLY P.D. = .4134 7/16"-27 UNS-3A - BL1524MT

DETROIT

5/8 18 NF 2 THREAD RING GAGES .625 .6250 GO NO GO P.D.'S = .5889 & .5848 UNF-2 - TT0656WW

DETROIT

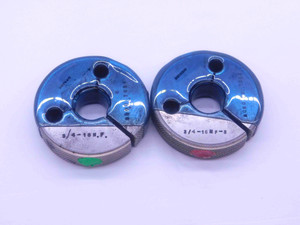

3/4 16 NF 3 THREAD RING GAGES .75 .750 GO NO GO P.D.'S = .7094 & .7062 UNF-3 - AY0323BU

DETROIT

1" 11 1/2 NPTF L1 PIPE THREAD PLUG GAGE 1.0 1.00 1.000 1.0000 N.P.T.F. DRYSEAL - NG0472BU

DETROIT

1" 20 NS 1 THREAD RING GAGE 1.0 GO ONLY P.D. = .9650 QUALITY INSPECTION TOOL
