DETROIT

DETROIT

1 3/8 20 NS LEFT HAND THREAD RING GAGE 1.375 NO GO ONLY P.D. = 1.3374 L.H. UNS - DW35825BX5

DETROIT

1 5/8 12 NF 3 THREAD PLUG GAGE 1.625 1.6250 NO GO ONLY P.D. = 1.5754 UNF-3 CHECK - DW35666BX5

DETROIT

1 5/8 12 SPIRALOCK HI PD & RAMP THREAD PLUG GAGE 1.625 NO GO ONLY PD = 1.5955 - DW27857RD

DETROIT

1 5/8 16 N 3 SET THREAD PLUG GAGE 1.625 1.6250 NO GO ONLY P.D. = 1.5803 CHECK - DW35667BX5

DETROIT

1 7/16 18 NEF 3 THREAD RING GAGE 1.4375 NO GO ONLY P.D. = 1.3976 UNEF-3 CHECK - DW10408RD

DETROIT

1 7/16 18 NS 3 THREAD RING GAGE 1.4375 NO GO ONLY P.D. = 1.3974 INSPECTION CHECK - DW13841AJ1

DETROIT

1" 14 SPIRALOCK THREAD PLUG GAGE 1.0 GO NO GO P.D.'S = .9678 & .9751 HI RAMP - DW37535CG4

DETROIT

1" 16 N 3 THREAD RING GAGE 1.0 1.00 1.000 1.0000 GO ONLY P.D. = .9594 CHECK - DW19218RD

DETROIT

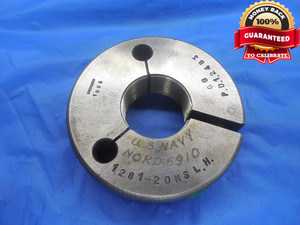

1.281 20 NS LEFT HAND THREAD RING GAGE GO ONLY P.D. = 1.2483 L.H. INSPECTION - DW8406BU

DETROIT

1.281 20 NS LEFT HAND THREAD RING GAGE NO GO ONLY P.D. = 1.2433 L.H. 1 9/32 - DW35830BX5

DETROIT

1.935 12 NS SET THREAD PLUG GAGE 1.9350 NO GO ONLY P.D. = 1.8624 INSPECTION - DW25397RD

DETROIT

1/16 27 NPSF PIPE THREAD PLUG GAGE .0625 GO NO GO P.D.'S = .2756 & .2803 2B - DW26042BL3
