GREENFIELD

GREENFIELD

2.1580 & 2.1625 CLASS X PIN PLUG GAGE GO NO GO 2.1563 +.0017 2 5/32 54.928 mm

GREENFIELD

2.6650 & 2.6700 CLASS X PIN PLUG GAGE GO NO GO OVERSIZE 2 21/32 67.818 mm CL-X

GREENFIELD

3 1/2 8 NPT L1 PIPE THREAD PLUG GAGE 3.5 3.50 3.500 3.5000 N.P.T. NATIONAL TAPER - DW31923CB4

GREENFIELD

3 56 UNF 2B LEFT HAND THREAD PLUG GAGE #3 .099 GO NO GO P.D.'S = .0874 & .0902 - DW28120AX4

GREENFIELD

3 56 UNF 3B THREAD PLUG GAGE #3 .099 .0990 GO NO GO P.D.'S = .0874 & .0895 CHECK - JF0664BU

GREENFIELD

3/4 20 NEF 2 THREAD RING GAGES .75 GO NO GO P.D.'S = .7175 & .7129 3/4-20 NEF-2

GREENFIELD

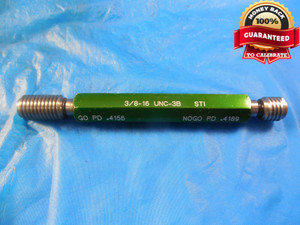

3/8 16 UNC 3B STI HELICOIL THREAD PLUG GAGE .375 GO NO GO P.D.'S = .4156 & .4189

GREENFIELD

3/8 19 BSPP PIPE THREAD PLUG GAGE .375 .3750 GO ONLY P.D. = 15.806 INSPECTION - DW41388CH5

GREENFIELD

3/8 24 UNF 2A THREAD RING GAGES .375 .3750 GO NO GO P.D.'S = .3468 & .3430 CHECK - DW11744BU

GREENFIELD

4 36 NS THREAD PLUG GAGE #4 .112 GO ONLY P.D. = .0940 .112-36 4-36 INSPECTION

GREENFIELD

4 40 NC W SET THREAD PLUG GAGE #4 .112 .1120 NO GO ONLY P.D. = .0922 INSPECTION - DW20523LVR

GREENFIELD

4 48 UNF 2B THREAD PLUG GAGE #4 .112 .1120 GO NO GO P.D.'S = .0985 & .1016 CHECK - DW8857RD
