LINCOLN GAGE

LINCOLN GAGE

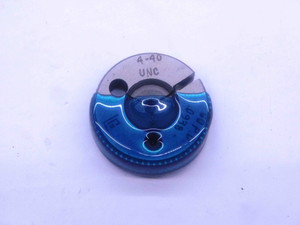

4 40 UNC SPECIAL THREAD RING GAGE #4 .112 GO ONLY PD = .0938 3A INSPECTION CHECK - DW33821CT4

LINCOLN GAGE

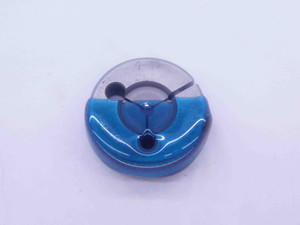

4 40 UNC THREAD RING GAGE #4 .112 .1120 GO ONLY P.D. = .0940 3A INSPECTION CHECK - DW33822CT4

LINCOLN GAGE

4 48 NF 3A THREAD RING GAGE #4 .112 .1120 GO ONLY P.D. = .0985 INSPECTION CHECK - DW18898RD

LINCOLN GAGE

4 48 UNF 2A SET THREAD PLUG GAGE #4 .112 .1120 GO NO GO P.D.'S = .0978 & .0954 - DW32835CT4

LINCOLN GAGE

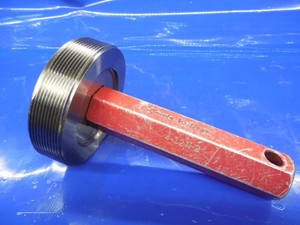

4" 12 N 2 THREAD PLUG GAGE 4.0 NO GO ONLY P.D. = 3.9538 QUALITY INSPECTION 4-12

LINCOLN GAGE

5 40 NC 3 THREAD PLUG GAGE #5 .125 .1250 GO NO GO P.D.'S = .1088 & .1105 UNC-3 - DW19915RD

LINCOLN GAGE

5 40 NC 3 THREAD PLUG GAGE #5 .125 .1250 GO NO GO P.D.'S = .1088 & .1105 UNC-3 - DW24695RD

LINCOLN GAGE

5.775 16 N BUTT-3 BUTTRESS THREAD PLUG GAGE GO NO GO P.D.'S = 5.7375 & 5.7427 - DW4253RD

LINCOLN GAGE

5/16 18 NC 2 THREAD PLUG GAGE .3125 GO NO GO P.D.'S = .2764 & .2805 UNC-2 CHECK - DW24169RD

LINCOLN GAGE

5/16 18 NC 2B SPECIAL THREAD PLUG GAGE .3125 GO NO GO P.D.'S = .2767 & .2805 - DW22217LVR

LINCOLN GAGE

5/16 18 UNC 2A BEFORE PLATE SET THREAD PLUG GAGE .3125 GO NO GO = .2742 & .2702 - DW33653CT4

LINCOLN GAGE

5/16 18 UNC 2A BEFORE PLATE SET THREAD PLUG GAGE .3125 NO GO ONLY P.D. = .2690 - DW34228CT4
