LOCKE

LOCKE

1.6507 CLASS X MASTER PLAIN BORE RING GAGE 1.6563 -.0056 UNDERSIZE 1 21/32 42 mm - JP1021RD

LOCKE

1.700 MASTER PLAIN BORE RING GAGE 1.7031 -.0031 OVERSIZE 1 45/64 43 mm 1.7000 - AS0079RD

LOCKE

1/2 20 NF 3 THREAD RING GAGES .5 .50 .500 GO NO GO P.D.'S = .4675 & .4649 UNF-3 - DW24401RD

LOCKE

1/2 24 NS 3 THREAD RING GAGE .5 .50 .500 .5000 NO GO ONLY P.D. = .4696 CHECK - DW22598RD

LOCKE

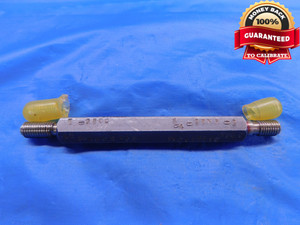

1/4 28 NF 2 THREAD PLUG GAGE .25 GO NO GO P.D.'S = .2270 & .2290 UNF-2 .250 - DW12132RD

LOCKE

1/4 28 NF 3 SET THREAD PLUG GAGE .25 .250 .2500 GO NO GO P.D.'S = .2268 & .2246 - DW27731RD

LOCKE

11/16 11 NC THREAD RING GAGE .6875 GO ONLY P.D. = .6420 QUALITY INSPECTION TOOL

LOCKE

11/16 36 NS 2 THREAD RING GAGE .6875 NO GO ONLY P.D. = .6650 INSPECTION CHECK - DW14524RD

LOCKE

11/16 36 NS 2 THREAD RING GAGES .6875 GO NO GO P.D.'S = .6684 & .6650 CHECK - DW14423RD

LOCKE

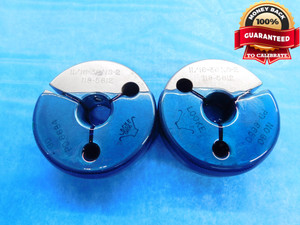

11/16 36 NS 2 THREAD RING GAGES .6875 GO NO GO P.D.'S = .6684 & .6650 CHECK - DW14437RD

LOCKE

15/16 32 NS 3 THREAD RING GAGES .9375 GO NO GO P.D.'S = .9172 & .9144 CHECK - DW14426RD

LOCKE

2 1/16 32 NF 3 THREAD PLUG GAGE 2.0625 GO NO GO P.D.'S = 2.0422 & 2.0470 UNF-3 - DW17627RD
