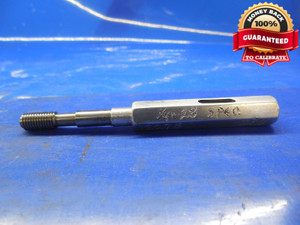

1/4 28 SPECIAL THREAD PLUG GAGE .25 GO ONLY P.D. = .2278 .250-28 SPEC. QUALITY

PMC

1/4 28 UNF 3A HILO SET THREAD PLUG GAGE .25 .250 GO NO GO P.D.'S = .2268 & .2243 - DW19399LVR

PMC

1/4 32 UNEF 2A HILO SET THREAD PLUG GAGE .25 GO NO GO P.D.'S = .2287 & .2255 - DW19423LVR

PMC

10 32 NF 2 SPECIAL THREAD RING GAGES #10 .190 GO NO GO P.D.'S = .1678 & .1640 - DW25572BF3

PMC

10 32 UNF 2A HILO SET THREAD PLUG GAGE #10 .190 GO NO GO P.D.'S = .1688 & .1658 - DW19426LVR

PMC

12 28 NF 2 HILO SET THREAD PLUG GAGE #12 .216 GO NO GO P.D.'S = .1928 & .1897

PMC

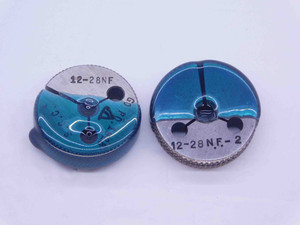

12 28 NF 2 THREAD RING GAGES #12 .216 GO NO GO P.D.'S = .1928 & .1897 UNF-2 - CH2040MS

PMC

13/16 28 UN 2A HILO SET THREAD PLUG GAGE .8125 GO NO GO P.D.'S = .7881 & .7843 - DW31568LVR

PMC

2 1/4 12 UN 3A LEFT HAND SET THREAD PLUG GAGE 2.25 GO NO GO PDS= 2.1959 & 2.1914 - DW3955RD

PMC

3 1/2 10 TBG API 5B PIPE THREAD PLUG GAGE 3.5 3.50 NON UPSET TUBING NUE NUT - DW38263DG5

PMC

3/16 40 NS THREAD RING GAGE .1875 GO ONLY P.D.= .1713 3/16-40 QUALITY INSPECTION

PMC

3/8 16 NC 2 BEFORE PLATE THREAD RING GAGES .375 GO NO GO P.D.'S = .3334 & .3289 - DW12152RD
