PONAM

PONAM

1.100 32 UNS 2A THREAD RING GAGES 1.1 .10 .100 GO NO GO P.D.'S = 1.0786 & 1.0748 - DW34779BD5

PONAM

1.1872 CLASS XX MASTER PLAIN BORE RING GAGE 1.1875 -.0003 UNDERSIZE 1 3/16

PONAM

1.188 10 TS 2B BEFORE PLATE TRIPLE LEAD THREAD PLUG GAGE GO NOGO = 1.1595 1.1695 - DW24101RD

PONAM

1.2167 18 UNS 2A THREAD RING GAGES GO NO GO P.D.'S = 1.1791 & 1.1742 NS-2A

PONAM

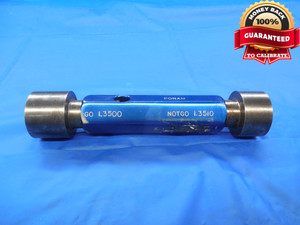

1.3500 & 1.3510 CL X PIN PLUG GAGE GO NO GO 1.3438 +.0062 1 11/32 34.290 mm

PONAM

1.3689 & 1.3710 CL X PIN PLUG GAGE GO NO GO 1.3750 -.0061 1 3/8 34.823 mm TOOL

PONAM

1.4190 CL Z PIN PLUG GAGE 1.4219 -.0029 OVERSIZE 1 27/64 36 mm 1.419 MINUS NO GO - DW9477BU

PONAM

1.433 32 UNS THREAD PLUG GAGE 1.4330 GO ONLY P.D. = 1.4128 2B OR 3B INSPECTION - DW14151RD

PONAM

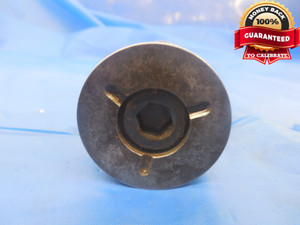

1.6880 & 1.6895 CLASS X PIN PLUG GAGE GO NO GO 1.6875 +.0005 OVER 1 11/16 42.913

PONAM

1.906 48 NS 2A THREAD RING GAGE 1 29/32 GO ONLY P.D. = 1.8930 UNS 1.9062 1.90625

PONAM

1/16 27 NPT L1 PIPE THREAD RING GAGE .0625 N.P.T. NATIONAL TAPER INSPECTION - BM1244

PONAM

1/2 10 NA STUB ACME 60 DEGREE 2-STR THREAD PLUG GAGE .5 GO NO GO = .4551 .4496 - DW4169RD
