PRATT & WHITNEY

PRATT & WHITNEY

0.325 40 THREAD PLUG GAGE .325 GO ONLY P.D. = .3088 .325"-40 QUALITY INSPECTION

PRATT & WHITNEY

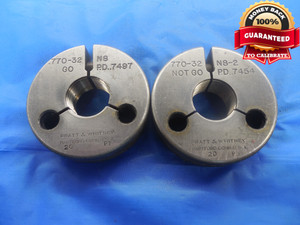

0.77 32 NS 2 THREAD RING GAGES .77 GO NO GO P.D.'S = .7497 & .7454 UNS-2 TOOL

PRATT & WHITNEY

0.969 32 NS 3 N05 LOCKNUT SET THREAD PLUG GAGE .969 GO NO GO PDS = .9487 & .9453 - DW7552BU

PRATT & WHITNEY

00 96 NS 3 THREAD RING GAGES #00 .047 GO NO GO P.D.'S = .0402 & .0390 UNS-3 - DW9279BU

PRATT & WHITNEY

1 1/16 14 NS SET THREAD PLUG GAGE 1.0625 GO NO GO P.D.'S = 1.0161 & 1.0125 CHECK - DW24135RD

PRATT & WHITNEY

1 1/16 14 NS THREAD PLUG GAGE 1.0625 GO NO GO P.D.'S = 1.0161 & 1.0197 CHECK - DW26956RD

PRATT & WHITNEY

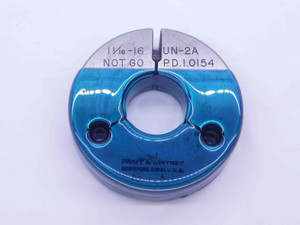

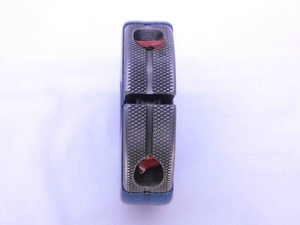

1 1/16 16 UN 2A THREAD RING GAGE 1.0625 NO GO ONLY P.D. = 1.0154 INSPECTION - DW34142CT4

PRATT & WHITNEY

1 1/16 18 UNEF 2B THREAD PLUG GAGE 1.0625 GO ONLY P.D. = 1.0264 2B OR 3B CHECK - DW27852RD

PRATT & WHITNEY

1 1/16 20 NS 2 THREAD PLUG GAGE 1.0625 GO NO GO P.D.'S = 1.0316 & 1.0364 CHECK - DW27544AQ4

PRATT & WHITNEY

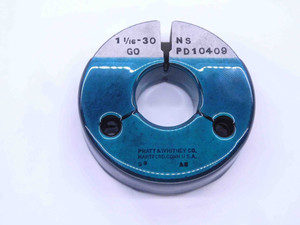

1 1/16 30 NS THREAD RING GAGE 1.0625 GO ONLY P.D. = 1.0409 INSPECTION UNS 3A - DW33711LVR

PRATT & WHITNEY

1 1/2 10 NS THREAD RING GAGE 1.5 1.50 1.500 1.5000 GO ONLY P.D. = 1.4350 UNS-3A - DW17663AW2

PRATT & WHITNEY

1 1/2 11 1/2 ANPT 6 STEP PIPE THREAD PLUG GAGE 1.5 CREST CHECK INSPECTION - DW4192RD
