1 3/4 24 UNF 2A THREAD RING GAGE 1.75 1.750 1.7500 NO GO ONLY P.D. = 1.7170 - DW41573BE6

THREAD CHECK

1 3/4 24 UNS 2B THREAD PLUG GAGE 1.75 1.750 GO NO GO P.D.'S = 1.7229 & 1.7288 - DW41684BE6

THREAD CHECK

1 3/8 12 UNF 2A BEFORE PLATE THREAD RING GAGE 1.375 NO GO ONLY P.D. = 1.3109 - DW41489OB6

THREAD CHECK

1 3/8 12 UNJF 3A SET THREAD PLUG GAGE 1.375 GO NO GO P.D.'S = 1.3209 & 1.3162 - DW20052CJ2

THREAD CHECK

1 7/16 16 UN 2B LEFT HAND THREAD PLUG GAGE 1.4375 GO NO GO PDS= 1.3969 & 1.4037 - DW25976BK3

THREAD CHECK

1 7/8 12 UN 2A LEFT HAND THREAD RING GAGE 1.875 NO GO ONLY P.D. = 1.8131 L.H. - DW39701LVR

THREAD CHECK

1 9/16 24 UNS 2B THREAD PLUG GAGE 1.5625 GO NO GO P.D.'S = 1.5354 & 1.5412 CHECK - DW41694BE6

THREAD CHECK

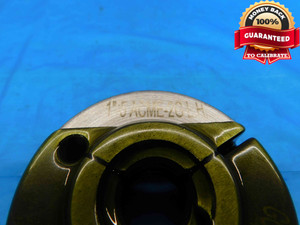

1" 5 ACME 2G LEFT HAND THREAD RING GAGE 1.0 5.0 GO ONLY P.D. = .8920 L.H. CHECK - DW22707LVR

THREAD CHECK

1.015 14 NPS PIPE THREAD RING GAGE GO NO GO P.D.'S = .9630 & .9530 NPS TOOL

THREAD CHECK

1.273 11 1/2 NPS PIPE THREAD RING GAGE 1.2730 GO NO GO P.D.'S = 1.2090 & 1.1990

THREAD CHECK

1.635 40 UNS 2B THREAD PLUG GAGE 1.6350 GO NO GO P.D.'S = 1.6188 & 1.6237 CHECK - DW34763BD5

THREAD CHECK

1/2 10 ACME 2G DOUBLE LEAD THREAD RING GAGE .5 .50 .500 NO GO ONLY P.D. = .4306 - DW22145AE3
