THREADWELL

THREADWELL

3/4 20 NEF 3 THREAD PLUG GAGE .75 .750 GO NO GO P.D.'S = .7175 & .7207 UNEF-3 - DW15163RD

THREADWELL

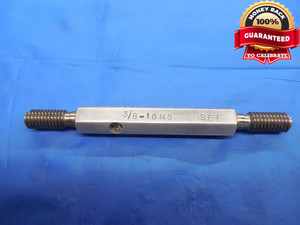

3/8 16 NS SET THREAD PLUG GAGE .375 GO NO GO P.D.'S = .3378 & .3364 UNS CHECK - DW7496BU

THREADWELL

3/8 24 NF 3 THREAD PLUG GAGE .375 .3750 GO NO GO P.D.'S = .3479 & .3503 UNF-3 - DW24722RD

THREADWELL

3/8 24 UNF 2A SET THREAD PLUG GAGE .375 GO NO GO P.D.'S = .3468 & .3430 QUALITY

THREADWELL

37/64 56 N 2 PREPLATE THREAD PLUG GAGE .578 GO NO GO P.D.'S = .5673 & .5704 B/P

THREADWELL

4 1/2 5 PIN P-GAGE PIPE THREAD RING GAGE 4.5 5.0 GO ONLY P.D. = 4.940 INSPECTION - DW19439LVR

THREADWELL

4 48 NF 3 LEFT HAND SET THREAD PLUG GAGE #4 .112 GO NO GO P.D.'S = .0985 & .0969 - DW7379BU

THREADWELL

4 48 NF 3B LEFT HAND THREAD PLUG GAGE #4 .112 GO NO GO P.D.'S = .0985 & .1006 LH - DW7381BU

THREADWELL

5 40 NC 3 LEFT HAND THREAD RING GAGE #5 .125 GO ONLY P.D. = .1088 UNC-3 3A L.H. - DW9686BU

THREADWELL

5 44 NF 3B LEFT HAND THREAD PLUG GAGE #5 .125 GO NO GO PD'S = .1102 & .1126 UNF - DW36451OB5

THREADWELL

5/16 18 NS 3 SPECIAL THREAD RING GAGES .3125 GO NO GO P.D.'S = .2795 & .2782 - DW8125BU

THREADWELL

5/16 24 NF 3 THREAD PLUG GAGE .3125 GO NO GO P.D.'S = .2854 & .2878 UNF-3 CHECK - CS5013BU
