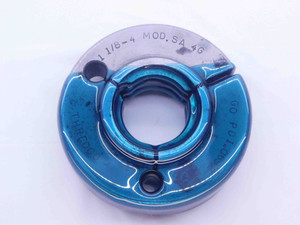

1 1/8 4 SA 4G MODIFIED STUB ACME THREAD RING GAGE 1.125 GO ONLY P.D. = 1.0692 - DW34117CT4

THREDCO

1 1/8 7 NC 2 THREAD PLUG GAGE 1.125 GO NO GO P.D.'S = 1.0322 & 1.0407 UNC-2 - DW37754CG4

THREDCO

1 11/16 32 UNS 1A SET THREAD PLUG GAGE 1.6875 GO NO GO P.D.'S = 1.6660 & 1.6599 - DW21390AA3

THREDCO

1 13/16 32 UNS 2B THREAD PLUG GAGE 1.8125 GO NO GO P.D.'S = 1.7922 & 1.7975

THREDCO

1 3/16 16 UN 3B THREAD PLUG GAGE 1.1875 NO GO ONLY PD = 1.1519 INSPECTION CHECK - DW22267LVR

THREDCO

1 3/16 18 NEF 2B THREAD PLUG GAGE 1.1875 GO NO GO P.D.'S = 1.1514 & 1.1577 CHECK - DW8884RD

THREDCO

1 3/16 20 UN 2B THREAD PLUG GAGE 1.1875 NO GO ONLY P.D. = 1.1611 2B OR 3B - DW21533RD

THREDCO

1 3/16 32 UNJS 3A THREAD RING GAGE 1.1875 GO ONLY P.D. = 1.1672 INSPECTION CHECK - DW23454AN3

THREDCO

1 3/4 12 NS 3 THREAD PLUG GAGE 1.75 NO GO ONLY P.D. = 1.7005 1.750 1.7500 CHECK - DW12101RD

THREDCO

1 3/4 12 UNJ 3A THREAD RING GAGE 1.75 1.750 1.7500 NO GO ONLY P.D. = 1.6914 - DW37609LVR

THREDCO

1 3/4 18 NS 2 THREAD RING GAGE 1.75 1.750 1.7500 GO ONLY P.D. = 1.7139 CHECK - DW13791AJ1

THREDCO

1 3/4 32 UNS 2A THREAD RING GAGES 1.75 GO NO GO P.D.'S = 1.7285 & 1.7244 1.750 - DW12765AL1
