WOODWORTH

WOODWORTH

1 1/8 40 NS 2 SET THREAD PLUG GAGE 1.125 GO NO GO P.D.'S = 1.1088 & 1.1043 - DW12547AG1

WOODWORTH

1 11/32 14 NS 2 THREAD RING GAGES 1.34375 GO NO GO P.D.'S = 1.2973 & 1.2917 - DW14431RD

WOODWORTH

1 29/32 48 NS 2A THREAD RING GAGES 1.90625 GO NO GO P.D.'S = 1.8917 & 1.8881 - DW24288RD

WOODWORTH

1 3/16 16 N2 MODIFIED THREAD RING GAGE 1.1875 GO ONLY P.D. = 1.1449 INSPECTION - DW24826LVR

WOODWORTH

1 3/16 18 NEF 3 THREAD PLUG GAGE 1.1875 GO NO GO P.D.'S = 1.1514 & 1.1550 UNEF-3 - DW24434RD

WOODWORTH

1 3/16 18 NS 3 THREAD PLUG GAGE 1.1875 GO NO GO P.D.'S = 1.1524 & 1.1560 CHECK - DW24439RD

WOODWORTH

1 3/8 16 N 2 MODIFIED THREAD RING GAGES 1.375 GO NO GO P.D.'S = 1.3430 & 1.3376 - DW18547RD

WOODWORTH

1" 11 1/2 ANPT L1 PIPE THREAD RING GAGE 1.0 1.00 1.000 1.0000 A.N.P.T. CHECK - DW16859LVR

WOODWORTH

1" 14 NF 3 THREAD RING GAGE 1.0 1.00 1.000 1.0000 NO GO ONLY P.D. = .9500 UNF-3 - DW14246RD

WOODWORTH

1" 16 NS 2 THREAD PLUG GAGE 1.0 1.00 1.000 GO NO GO P.D.'S = .9594 & .9639 CHECK - DW27492AQ4

WOODWORTH

1" 8 NC 2 THREAD RING GAGE 1.0 1.00 1.000 1.0000 GO ONLY P.D. = .9188 UNC-2 3A - DS0353SL

WOODWORTH

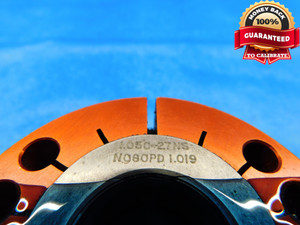

1.05 27 NS THREAD RING GAGE 1.050 1.0500 NO GO ONLY P.D. = 1.0190 INSPECTION - DW14259RD
