NORTH AMERICAN

NORTH AMERICAN

5/8 11 UNC 3A THREAD RING GAGES .625 .6250 GO NO GO P.D.'S = .5660 & .5619 CHECK - DW3651RD

NORTH AMERICAN

5/8 20 N BUTT 2 THREAD PLUG GAGE .625 GO NO GO P.D.'S = .5950 & .6006 .6250 - DW12837AL1

NORTH AMERICAN

7/16 28 UNEF 2A THREAD RING GAGES .4375 GO NO GO P.D.'S = .4132 & .4096 CHECK - DW13728LVR

NORTH AMERICAN

CERTIFIED 1 1/4 10 UNS 2B THREAD PLUG GAGE 1.25 GO NO GO PD'S = 1.1850 & 1.1932 - DW25290BE3

NORTH AMERICAN

CERTIFIED 1 5/8 12 UN 2B THREAD PLUG GAGE 1.625 GO NO GO PD'S = 1.5709 & 1.5785 - DW28465TLC

NORTH AMERICAN

CERTIFIED 1/4 28 UNF 3B STI HELICOIL THREAD PLUG GAGE .25 GO NO GO = .2732 .2754 - DW28452TLC

NORTH AMERICAN

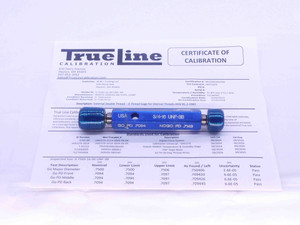

CERTIFIED 3/4 16 UNF 3B THREAD PLUG GAGE .75 GO NO GO P.D.'S = .7094 & .7143 - DW26473TLC

NORTH AMERICAN

M18 X 1.5 6g METRIC SET THREAD PLUG GAGE 18 GO NO GO P.D.'S = 16.994 & 16.854 - DW22119LVR

NORTH AMERICAN

M3 X .5 6H SPECIAL THREAD PLUG GAGE 3 0.5 GO NO GO P.D.'S = .1063 & .1102 CHECK - DW28641LVR

NORTH AMERICAN

M3 X .5 6H SPECIAL THREAD PLUG GAGE 3 0.5 GO ONLY P.D. = 2.700 INSPECTION CHECK - DW21409AA3

NORTH AMERICAN

M30 X 3.5 6g METRIC THREAD RING GAGE 30 GO ONLY P.D. = 27.674 INSPECTION CHECK - DW35705BZ5

NORTH AMERICAN

M5 X .8 6H METRIC SPECIAL THREAD PLUG GAGE 5 0.8 GO NO GO P.D.'S = 4.480 & 4.603 - DW35157LVR
