PENNOYER-DODGE

PENNOYER-DODGE

.2514 & .2524 CLASS X PIN PLUG GAGE GO NO GO .2500 +.0014 OVERSIZE 1/4 6.386 mm

PENNOYER-DODGE

.2812 80 NS 3B THREAD PLUG GAGE 9/32 .28125 GO NO GO P.D.'S = .2731 & .2754

PENNOYER-DODGE

.294 20 UNS 2B THREAD PLUG GAGE .2940 GO NO GO P.D.'S = .2615 & .2660 NS-2B

PENNOYER-DODGE

.376 & .3763 CL XX PIN PLUG GAGE GO NO GO .3750 +.0010 3/8 9.558 mm .3760 - JP0105LVR

PENNOYER-DODGE

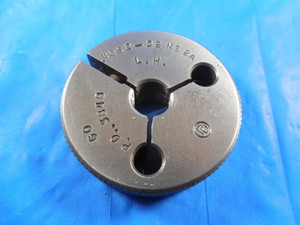

.4062 32 NS 2A LEFT HAND THREAD RING GAGE GO ONLY P.D. = .3848 INSPECTION LH

PENNOYER-DODGE

.465 36 NS 2 THREAD RING GAGE 0.465 NO GO ONLY P.D. = .4431 QUALITY INSPTION

PENNOYER-DODGE

.4659 & .4807 CL Z PIN PLUG GAGE GO NO GO .4688 -.0029 UNDERSIZE 15/32 11.834 mm

PENNOYER-DODGE

.6245 .6255 DIA CLASS X EXTRA LONG PIN PLUG GAGE GO NO GO UNDER & OVERSIZE .6250

PENNOYER-DODGE

.7150 & .7270 DIA. CLASS X SMOOTH PIN PLUG GAGE GO NO GO OVERSIZE .6875 11/16

PENNOYER-DODGE

.7180 & .7270 DIA. CLASS X SMOOTH PIN PLUG GAGE GO NO GO OVERSIZE .6875 11/16

PENNOYER-DODGE

.7190 & .7240 DIA. CLASS X SMOOTH PIN PLUG GAGE GO NO GO OVERSIZE .6875 11/16

PENNOYER-DODGE

.7400 & .7600 DIA CLASS Z SMOOTH PIN PLUG GAGE GO NO GO UNDER & OVERSIZE .75 3/4
