REGAL

REGAL

3/4 16 NF SET THREAD PLUG GAGE .75 .750 .7500 GO NO GO P.D.'S = .7094 & .7029 - DW26968RD

REGAL

3/4 16 UNF 2A TRUNCATED SET THREAD PLUG GAGE .75 GO NO GO P.D.'S = .7079 & .7029

REGAL

3/4 18 NS 2 SPECIAL THREAD PLUG GAGE .75 .750 GO NO GO P.D.'S = .7139 & .7180 - DW42472OB6

REGAL

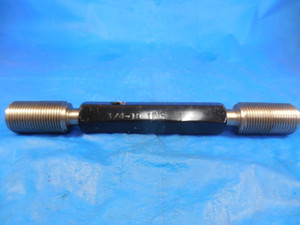

3/4 18 UNS SET THREAD PLUG GAGE .75 GO NO GO P.D.'S = .7139 & .7079 SETTING TOOL

REGAL

3/4 20 UNEF 2B THREAD PLUG GAGE .75 .750 .7500 NO GO ONLY P.D. = .7232 CHECK - DW24373RD

REGAL

3/4 27 NS 2 THREAD PLUG GAGE .75 .750 .7500 GO NO GO P.D.'S = .7259 & .7305 - DW26061BL3

REGAL

3/4 32 UNS 3 THREAD RING GAGE .75 .750 .7500 NO GO ONLY P.D. = .7317 INSPECTION - DW39282SLW

REGAL

3/4 7 NA 2G ACME THREAD PLUG GAGE .75 .750 .7500 GO ONLY P.D. = .6786 CHECK - DW30612BL4

REGAL

3/8 16 NS SPECIAL THREAD PLUG GAGE .375 GO NO GO P.D.'S = .3439 & .3496 CHECK - DW42463OB6

REGAL

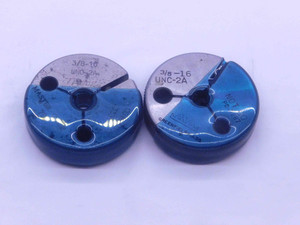

3/8 16 UNC 2A THREAD RING GAGES .375 .3750 GO NO GO P.D.'S = .3331 & .3287 CHECK - DW18373LVR

REGAL

3/8 16 UNS 2B BEFORE PLATE THREAD PLUG GAGE .375 .3750 NO GO ONLY P.D. = .3417 - DW37455CQ5

REGAL

3/8 16 UNS SPECIAL THREAD PLUG GAGE .375 GO NO GO P.D.'S = .3404 & .3461 CHECK - DW42462OB6
