REGAL

REGAL

.670 18 UNS THREAD PLUG GAGE .67 .6700 GO NO GO P.D.'S = .6325 & .6390 CHECK - DW17015AW2

REGAL

.680 18 NS THREAD PLUG GAGE .68 .6800 GO NO GO P.D.'S = .6425 & .6500 CHECK - DW17023AW2

REGAL

.7505 & .7520 CLASS X PIN PLUG GAGE GO NO GO .7500 +.0005 OVERSIZE 3/4 19.063 mm

REGAL

.802 18 NS THREAD RING GAGE .8020 GO ONLY P.D. = .7576 .802"-18 INSPECTION CHECK - DW16515AW2

REGAL

.8180 & .8220 CLASS X PIN PLUG GAGE GO NO GO .8125 +.0055 OVERSIZE 13/16 20.879

REGAL

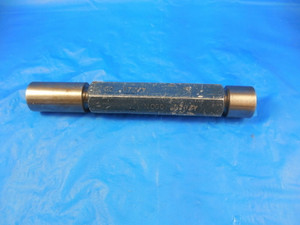

.872 & .878 CLASS Y SMOOTH PIN PLUG GAGE GO NO GO .875 - .003 UNDERSIZE 7/8 TOOL

REGAL

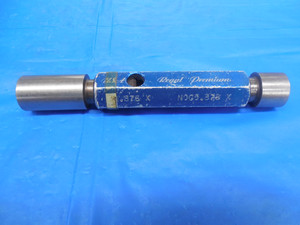

.8760 & .8780 CLASS X PIN PLUG GAGE GO NO GO .8750 +.0010 OVERSIZE 7/8 22.250 mm

REGAL

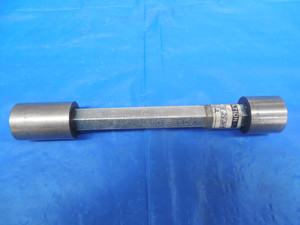

.8770 & .8800 CLASS Y PIN PLUG GAGE GO NO GO .8750 +.0020 OVERSIZE 7/8 22.276 mm

REGAL

.8800 & .8820 CLASS X PIN PLUG GAGE GO NO GO .8750 +.0050 OVERSIZE 7/8 22.352 mm

REGAL

0 80 UNF 3A SET THREAD PLUG GAGE #0 .060 GO NO GO P.D.'S = .0519 & .0506 NF-3A - DW7504BU

REGAL

1 1/4 12 UNF THREAD RING GAGE 1.25 1.250 1.2500 GO ONLY P.D. = 1.1959 3A CHECK - DW17109AW2

REGAL

1 1/4 16 NS 3 THREAD PLUG GAGE 1.25 GO NO GO P.D.'S = 1.2094 & 1.2134 UNS-3 - DW7369BU
