REPUBLIC

REPUBLIC

1/2 14 ANPT L1 PIPE THREAD RING GAGE .5 .50 .500 .5000 A.N.P.T. AERONAUTICAL - DW34734CK4

REPUBLIC

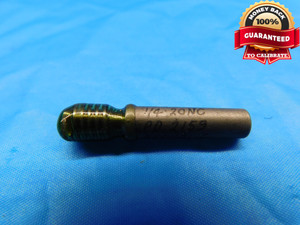

1/4 20 NC SPECIAL THREAD PLUG GAGE .25 .250 NO GO ONLY P.D. = .2159 UNC CHECK - DW20737LVR

REPUBLIC

1/4 28 NF 3 SET THREAD PLUG GAGE .25 GO NO GO P.D.'S = .2268 & .2246 FULL FORM - DW27539RD

REPUBLIC

1/4 32 NEF 3 THREAD PLUG GAGE .25 NO GO ONLY P.D = .2319 1/4-32 NEF-3 TAPERLOCK

REPUBLIC

2 1/2 6 N THREAD RING GAGE 2.5 2.50 2.500 2.5000 GO ONLY P.D. = 2.3917 UN-3A - DW23203FKB

REPUBLIC

2 56 NC 2 THREAD RING GAGES #2 .086 .0860 GO NO GO P.D.'S = .0744 & .0724 UNC-2 - DW12316RD

REPUBLIC

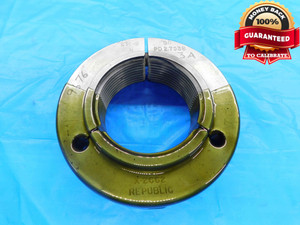

2 7/8 8 N 3A THREAD RING GAGE 2.875 2.8750 GO ONLY P.D. = 2.7938 INSPECTION UN - DW22075LVR

REPUBLIC

2.362 8 N THREAD RING GAGE 2.3620 GO ONLY P.D. = 2.2808 2.362"-8 INSPECTION - DW23206FKB

REPUBLIC

3 3/4 8 N LEFT HAND THREAD RING GAGE 3.75 GO ONLY P.D. = 3.6688 L.H. INSPECTION - DW6275RD

REPUBLIC

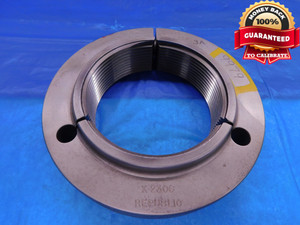

3 63/64 8 N 3A LEFT HAND THREAD RING GAGE 3.9843 GO ONLY P.D. = 3.9032 L.H. UN - DW14134RD

REPUBLIC

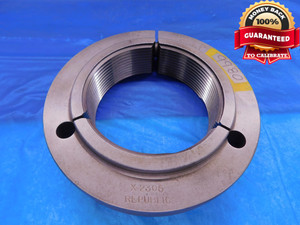

3 63/64 8 N 3A THREAD RING GAGE 3.9843 GO ONLY P.D. = 3.9032 UN-3A - DW14135RD

REPUBLIC

3.150 6 NS LEFT HAND THREAD RING GAGE 3.15 3.1500 GO ONLY P.D. = 3.0420 L.H. - DW23217FKB
