SCC

SCC

4 64 UNS 2B THREAD PLUG GAGE #4 .112 .1120 GO NO GO P.D.'S = .1019 & .1048 CHECK - DW37231SLW

SCC

4 64 UNS 2B THREAD PLUG GAGE #4 .112 .1120 GO NO GO P.D.'S = .1019 & .1048 CHECK - DW38230SLW

SCC

4.2548 CLASS X PIN PLUG GAGE 4.2500 +.0048 OVERSIZE 4 1/4 108.072 mm INSPECTION

SCC

4.2552 CLASS X PIN PLUG GAGE 4.2500 +.0052 OVERSIZE 4 1/4 108.082 mm INSPECTION

SCC

49/64 48 UNS THREAD RING GAGE .765625 .7656 .76562 GO ONLY P.D. = .7521 NS-3A

SCC

5 40 NC 3A THREAD RING GAGES #5 .125 GO NO GO P.D.'S = .1088 & .1068 UNC-3A

SCC

5 44 NF 2 SET THREAD PLUG GAGE #5 .125 .1250 GO NO GO P.D.'S = .1102 & .1079 - DW27582RD

SCC

5 44 NF 3A .001 UNDERSIZE SET THREAD PLUG GAGE #5 .125 GO NO GO = .1092 & .1073 - DW15358EY

SCC

5 5/8 16 UNS 3A THREAD RING GAGES 5.625 GO NO GO P.D.'S = 5.5844 & 5.5799 NS-3A

SCC

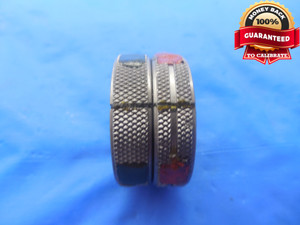

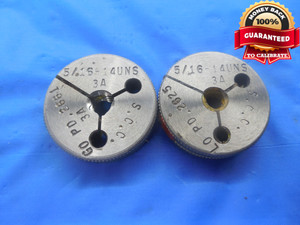

5/16 14 UNS 3A THREAD RING GAGES .3125 GO NO GO P.D.'S = .2661 & .2625 NS-3A

SCC

5/16 18 SPECIAL SET THREAD PLUG GAGE .3125 GO ONLY PD= .2737 5/16"-18 INSPECTION - DW18284BP2

SCC

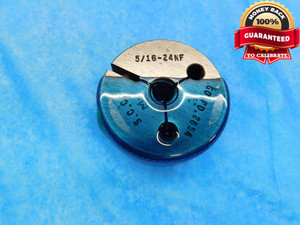

5/16 24 NF THREAD RING GAGE .3125 GO ONLY P.D. = .2854 UNF 3A NF-2 3 - DS0329BURL
