5/16 24 UNF BEFORE PLATE THREAD RING GAGES .3125 GO NO GO P.D.'S = .2841 & .2804 - DW16422LVR

SCC

5/16 40 NS 2 THREAD RING GAGES .3125 GO NO GO P.D.'S = .2963 & .2930 INSPECTION - DW10755BU

SCC

5/16 40 NS 3 THREAD RING GAGES .3125 GO NO GO P.D.'S = .2963 & .2639 - DW24303RD

SCC

5/8 11 NC 4 THREAD RING GAGE .625 .6250 GO ONLY P.D. = .5665 UNC-4 3A CHECK - DW24396RD

SCC

5/8 18 NF 2 THREAD RING GAGES .625 GO NO GO P.D.'S = .5889 & .5848 UNF-2 CHECK - DW14690RD

SCC

5/8 18 NF SPECIAL THREAD PLUG GAGE .625 .6250 GO ONLY P.D. = .5929 UNF 2B OR 3B - DW20503LVR

SCC

6 32 NC SPEC SPECIAL THREAD RING GAGE #6 .138 NO GO ONLY P.D. = .1145 UNC-SPEC - DW19697LVR

SCC

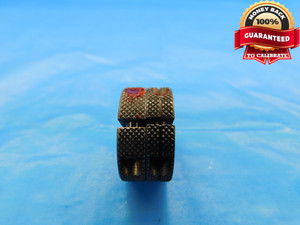

6 32 NC SPECIAL THREAD RING GAGES #6 .138 GO NO GO P.D.'S = .1170 & .1145 UNC - DW19003LVR

SCC

6 40 NF 1 SET THREAD PLUG GAGE #6 .138 .1380 GO NO GO P.D.'S = .1208 & .1174 - DW34812CT4

SCC

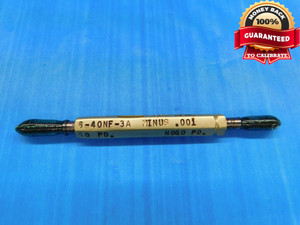

6 40 NF 3A .001 UNDERSIZE SET THREAD PLUG GAGE #6 .138 GO NO GO = .1208 & .1188 - DW15355EY

SCC

6 40 NF 3A THREAD RING GAGES #6 .138 GO NO GO P.D.'S = .1218 & .1198 UNF-3A

SCC

7/16 14 NC 5 THREAD RING GAGES .4375 GO NO GO P.D.'S = .3991 & .3955 UNC-5 CHECK - DW7912BU
