SCC

SCC

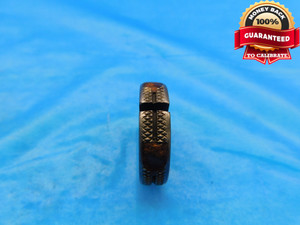

8 32 NC 2 THREAD RING GAGE #8 .164 .1640 NO GO ONLY P.D. = .1410 UNC-2 CHECK - JF0686BU

SCC

9/16 18 UNF 2A BEFORE PLATE SET THREAD PLUG GAGE .5625 GO ONLY P.D.= .5238 NF-2A

SCC

9/16 24 NEF 2 SET THREAD PLUG GAGE .5625 NO GO ONLY P.D. = .5314 UNEF-2 CHECK - DW6045BU

SCC

9/16 24 NEF THREAD PLUG GAGE .5625 GO ONLY P.D. = .5354 UNEF 2B OR 3B CHECK - DW24908RD

SCC

BUDGET .281 32 NS 2 THREAD RING GAGE .2812 9/32 GO ONLY P.D. = .2597 .281"-32 - DW16040LVR

SCC

CERTIFIED 12 24 UNC 3A THREAD RING GAGES #12 .216 GO NO GO PD'S = .1889 & .1863 - DW36036TLC

SCC

CERTIFIED 2 56 NC 3 SET THREAD PLUG GAGE #2 .086 GO NO GO PD'S = .0744 & .0729 - DW36415TLC

SCC

CERTIFIED 2 64 NF 2A SET THREAD PLUG GAGE #2 .086 GO NO GO = .0753 .0733 UNF-2A - DW30297TLC

SCC

CERTIFIED 3/8 24 UNF 3A THREAD RING GAGES .375 GO NO GO P.D.'S = .3479 & .3450 - DW32221TLC

SCC

CERTIFIED 4 40 UNC 2B THREAD PLUG GAGE #4 .112 GO NO GO P.D.'S = .0958 & .0991 - DW26172TLC

SCC

CERTIFIED 7/16 20 UNF 2A THREAD RING GAGES .4375 GO NO GO PD'S = .4037 & .3995 - DW32231TLC

SCC

CERTIFIED M20 X 1.5 6g SET THREAD PLUG GAGE 20 GO ONLY P.D. = .7477 INSPECTION - DW26758TLC
