SHEFFIELD

SHEFFIELD

5/16 32 NS 3 LEFT HAND THREAD RING GAGE .3125 GO ONLY P.D. = .2922 L.H. CHECK - DW27682RD

SHEFFIELD

5/16 32 NS BEFORE PLATE THREAD RING GAGE .3125 GO ONLY P.D. = .2900 B/P QUALITY

SHEFFIELD

5/16 32 SET THREAD PLUG GAGE .3125 GO NO GO P.D.'S = .2912 & .2882 FULL FORM - DW27821RD

SHEFFIELD

5/16 40 NS 2 THREAD PLUG GAGE .3125 GO NO GO P.D.'S = .2963 & .2992 UNS-2 CHECK - DW7619BU

SHEFFIELD

5/8 11 NS 5 SET THREAD PLUG GAGE .625 GO NO GO P.D.'S = .5704 & .5682 UNS-5 - DW7549BU

SHEFFIELD

5/8 11 NS SPECIAL THREAD RING GAGE .625 .6250 NO GO ONLY P.D. = .5700 - DW24409RD

SHEFFIELD

5/8 18 NF 2 SET THREAD PLUG GAGE .625 .6250 GO NO GO P.D.'S = .5889 & .5848 - DW27264RD

SHEFFIELD

5/8 24 NEF 2 SET THREAD PLUG GAGE .625 GO NO GO P.D.'S = .5939 & .5898 SETTING

SHEFFIELD

6 32 NC 3 THREAD RING GAGE #6 .138 NO GO ONLY P.D. = .1158 UNC-3 .1380 CHECK - DW9968RD

SHEFFIELD

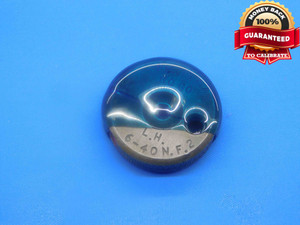

6 40 NF 2 LEFT HAND THREAD RING GAGE #6 .138 NO GO ONLY P.D. = .1194 UNF-2 L.H. - DW28929LVR

SHEFFIELD

6 40 NF 3 THREAD RING GAGES #6 .138 .1380 GO NO GO P.D.'S = .1218 & .1201 UNF-3 - DW18819RD

SHEFFIELD

6 40 UNF 2B THREAD PLUG GAGE #6 .138 NO GO ONLY P.D. = .1252 6-40 U.N.F.
