SHEFFIELD

SHEFFIELD

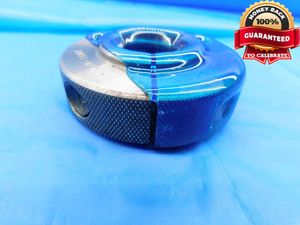

1 1/8 7 UNC 3A THREAD RING GAGE 1.125 1.1250 GO ONLY P.D. = 1.0322 INSPECTION - DW25001LVR

SHEFFIELD

1 1/8 8 N 2 SET THREAD PLUG GAGE 1.125 1.1250 NO GO ONLY P.D. = 1.0359 FULL FORM - DW27674RD

SHEFFIELD

1 13/32 32 NS THREAD PLUG GAGE 1.40625 GO NO GO P.D.'S = 1.7922 & 1.7964 CHECK - DW12307RD

SHEFFIELD

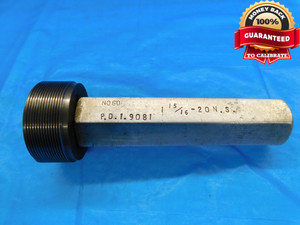

1 15/16 20 NS THREAD PLUG GAGE 1.9375 NO GO ONLY P.D. = 1.9081 INSPECTION CHECK - DW18477RD

SHEFFIELD

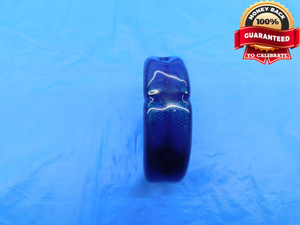

1 3/32 18 NS THREAD RING GAGE 1.09375 1.0937 NO GO ONLY P.D. = 1.0524 INSPECTION - DW25330RD

SHEFFIELD

1 3/32 18 NS THREAD RING GAGES 1.09375 GO NO GO P.D.'S = 1.0576 & 1.0524 CHECK - DW12020RD

SHEFFIELD

1 3/4 12 NS 3 THREAD PLUG GAGE 1.75 NO GO ONLY P.D. = 1.7005 UNS-3 QUALITY TOOL

SHEFFIELD

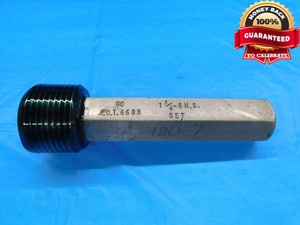

1 3/4 8 NS SET THREAD PLUG GAGE 1.75 1.750 1.7500 GO ONLY P.D. = 1.6688 UN-3A - DW23050FKB

SHEFFIELD

1 3/8 8 N SET THREAD PLUG GAGE 1.375 1.3750 NO GO ONLY P.D. = 1.2852 INSPECTION - DW27686RD

SHEFFIELD

1 3/8 8 NS THREAD RING GAGE 1.375 1.3750 GO ONLY P.D. = 1.2985 INSPECTION CHECK - DW17042AW2

SHEFFIELD

1 5/16 18 NS 3 THREAD RING GAGE 1.3125 NO GO ONLY P.D. = 1.2723 INSPECTION CHECK - DW14203RD

SHEFFIELD

1 5/8 12 N 3 THREAD RING GAGES 1.625 1.6250 GO NO GO P.D.'S = 1.5709 & 1.5664 - DW14938RD
