SHEFFIELD

SHEFFIELD

1" 20 NEF 3 SET THREAD PLUG GAGE 1.0 1.00 1.000 GO NO GO P.D.'S = .9675 & .9641 - DW27604RD

SHEFFIELD

1.0348 & 1.0438 PIN PLUG GAGE GO NO GO 1.0469 -.0031 OVERSIZE 1 3/64 26.284 mm - DW12709AD1

SHEFFIELD

1.050 24 THREAD RING GAGE 1.5 1.50 1.500 1.5000 GO ONLY P.D. = 1.0229 CHECK - DW14235RD

SHEFFIELD

1.172 24 N 3 FLINT HARD THREAD PLUG GAGE GO NO GO P.D.'S = 1.1449 & 1.1489 CHECK - DW24881RD

SHEFFIELD

1.172 24 N 3 SET THREAD PLUG GAGE 1.1720 GO NO GO P.D.'S = 1.1449 & 1.1409 CHECK - DW30862BN4

SHEFFIELD

1.173 18 NS N06 LOCKNUT SET THREAD PLUG GAGE 1.1730 GO ONLY P.D. = 1.1369 CHECK - DW21692RD

SHEFFIELD

1.187 48 NS 2 THREAD RING GAGE NO GO ONLY P.D. = 1.1691 1.1870 INSPECTION CHECK - DW12999RD

SHEFFIELD

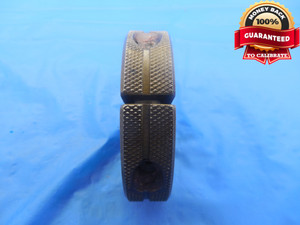

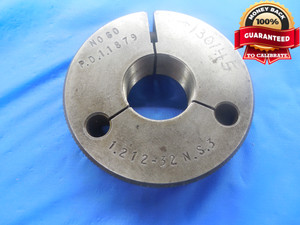

1.212 32 NS 3 THREAD RING GAGE NO GO ONLY P.D. = 1.1879 UNS-3 1.212"-32 TOOL

SHEFFIELD

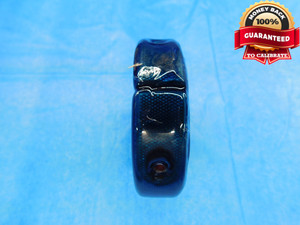

1.2365 16 NS THREAD RING GAGE GO ONLY P.D. = 1.1959 1.2365"-16 INSPECTION CHECK - DW14231RD

SHEFFIELD

1.2550 CL XX MASTER PLAIN BORE RING GAGE 1.2500 +.0050 1 1/4 32 mm 1.255 CHECK - DW26601BS3

SHEFFIELD

1.2590 CL XX MASTER PLAIN BORE RING GAGE 1.2500 +.0090 1 1/4 32 mm 1.259 CHECK - DW26581BS3

SHEFFIELD

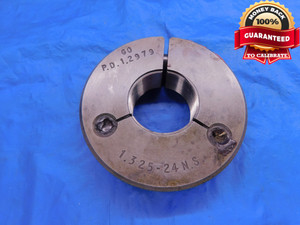

1.325 24 NS THREAD RING GAGE 1.3250 GO ONLY P.D. = 1.2979 1.325"-24 INSPECTION - DW12995RD
