TAFT PEIRCE

TAFT PEIRCE

.320 40 NS 1 THREAD RING GAGE .32 .3200 GO ONLY P.D. = .3028 INSPECTION CHECK - DW18862RD

TAFT PEIRCE

.490 32 NS 2 THREAD RING GAGES .49 .4900 GO NO GO P.D.'S = .4697 & .4661 CHECK - DW24272RD

TAFT PEIRCE

.6700 24 NS 2 SET THREAD PLUG GAGE .67 .670 GO NO GO P.D.'S = .6429 & .6388 - DW27259RD

TAFT PEIRCE

.924 18 NS 2 THREAD PLUG GAGE .9240 GO NO GO P.D.'S = .8879 & .8928 INSPECTION - DW15159RD

TAFT PEIRCE

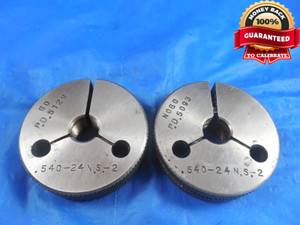

0.54 24 NS 2 THREAD RING GAGES .54 GO NO GO P.D.'S = .5129 & .5093 .540-24 NS-2

TAFT PEIRCE

1 1/2 11 1/2 NPT L1 PIPE THREAD PLUG GAGE 1.5 1.50 1.500 1.5000 N.P.T. NATIONAL - DW6477BU

TAFT PEIRCE

1 1/4 11 1/2 NPT PLAIN TAPER PIPE THREAD PLUG GAGE 1.25 CHECK FOR 1.557 P.D.

TAFT PEIRCE

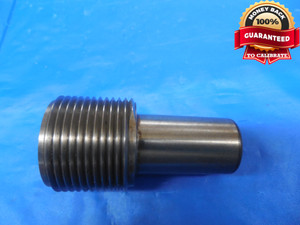

1 1/4 12 NF 1 THREAD PLUG GAGE 1.25 GO ONLY P.D. = 1.1959 N.F. 1 NF-1 QUALITY

TAFT PEIRCE

1 1/4 12 SAE LEFT HAND SET THREAD PLUG GAGE 1.25 GO NO GO = 1.1959 & 1.1919 NF-3 - DW21142LVR

TAFT PEIRCE

1 1/4 12 SAE THREAD PLUG GAGE 1.25 1.250 1.2500 NO GO ONLY P.D. = 1.1999 CHECK - DW21147LVR

TAFT PEIRCE

1 1/4 16 NS THREAD RING GAGE 1.25 1.250 1.2500 GO ONLY P.D. = 1.2094 UNS-3A - DW17522LVR

TAFT PEIRCE

1 1/4 18 NEF 2B THREAD PLUG GAGE 1.25 1.250 NO GO ONLY P.D. = 1.2202 UNEF-2B - DW21566RD
