TAFT PEIRCE

TAFT PEIRCE

2 3/4 12 NS SET THREAD PLUG GAGE 2.75 2.750 2.7500 GO ONLY P.D. = 2.6959 UN 3A - DW4767RD

TAFT PEIRCE

2 5/16 18 NS 2 THREAD PLUG GAGE 2.3125 NO GO ONLY P.D. = 2.2827 INSPECTION CHECK - DW40131AS6

TAFT PEIRCE

2 5/8 12 N 4 THREAD PLUG GAGE 2.625 GO NO GO P.D.'S = 2.5709 & 2.5736 UN-4 CHECK - DW31920CB4

TAFT PEIRCE

2" 4 1/2 NS 3 SET THREAD PLUG GAGE 2.0 2.00 2.000 GO ONLY P.D. = 1.8557 UNS 3A - DW34196AP5

TAFT PEIRCE

2" 4 1/2 NS 3 THREAD RING GAGE 2.0 2.00 2.000 4.5 GO ONLY P.D. = 1.8557 UNC 3A - DW41646CH5

TAFT PEIRCE

3 1/2 10 NS 3 THREAD RING GAGE 3.5 3.50 3.500 3.5000 GO ONLY P.D. = 3.435 - DW13372RD

TAFT PEIRCE

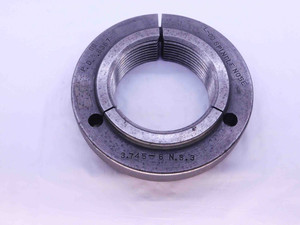

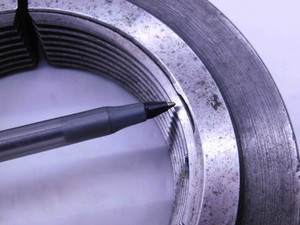

3.745 6 NS 3 THREAD RING GAGE GO ONLY P.D. = 3.6367 3.745"-6 INSPECTION UNS 3A - DW40995CH5

TAFT PEIRCE

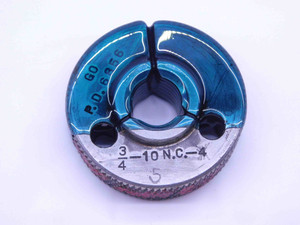

3/4 10 NC 5 THREAD RING GAGE .75 .750 .7500 GO ONLY P.D. = .6856 UNC-5 3A CHECK - DW31883CB4

TAFT PEIRCE

3/4 10 NC 5 THREAD RING GAGE .75 .750 .7500 NO GO ONLY P.D. = .6882 UNC-5 CHECK - DW31794CB4

TAFT PEIRCE

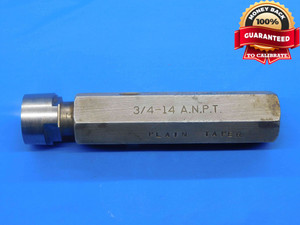

3/4 14 ANPT 6 STEP PIPE THREAD PLUG GAGE .75 .750 .7500 A.N.P.T. CREST CHECK NPT - CH1639MS

TAFT PEIRCE

3/4 36 NS 3 THREAD PLUG GAGE .75 .750 .7500 GO NO GO P.D.'S = .7320 & .7350 - DW24606RD

TAFT PEIRCE

3/8 12 NS 2 THREAD RING GAGE .375 .3750 GO ONLY P.D. = .3209 INSPECTION UNS-3A - DW34186AD5
