Working Plug Gages for Checking Threaded Holes

HANSON WHITNEY

9/16 18 NF 2 THREAD PLUG GAGE .5625 GO NO GO P.D.'S = .5264 & .5305 UNF-2 CHECK - DW12254RD

YOU ARE PURCHASING THE PICTURED RIGHT HAND THREAD PLUG GAGE.SOLD BY M & J TOOLING LLCDAYTON, OHIO

7 9/16 12 NS 2 LEFT HAND THREAD PLUG GAGE 7.5625 GO NO GO PD'S = 7.5084 & 7.5174 - DW12264RD

YOU ARE PURCHASING THE PICTURED LEFT HAND THREAD PLUG GAGE.SOLD BY M & J TOOLING LLCDAYTON, OHIO

PRATT & WHITNEY

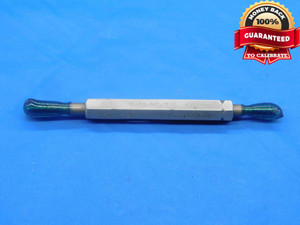

4 48 NF 3 THREAD PLUG GAGE #4 .112 .1120 GO NO GO P.D.'S = .0985 & .1001 UNF-3 - DW12226RD

YOU ARE PURCHASING THE PICTURED THREAD PLUG GAGE.SOLD BY M & J TOOLING LLCDAYTON, OHIO

GTD

5/16 32 NEF 2 THREAD PLUG GAGE .3125 GO NO GO P.D.'S = .2922 & .2955 UNEF-2 - DW12174RD

YOU ARE PURCHASING THE PICTURED THREAD PLUG GAGE.SOLD BY M & J TOOLING LLCDAYTON, OHIO

5.825 4 UNJS MODIFIED STUB THREAD PLUG GAGE GO ONLY P.D. = 5.7545 2B OR 3B - DW12200AB1

YOU ARE PURCHASING THE PICTURED MODIFIED STUB THREAD PLUG GAGE.SOLD BY M & J TOOLING LLCDAYTON, OHIO

STANDARD GAGE CO.

.848 64 NS 2 THREAD PLUG GAGE .8480 GO AND NO GO INSPECTION CHECK - DW12195RD

REPUBLIC

1 1/2 12 NF 3 THREAD PLUG GAGE 1.5 NO GO ONLY P.D. = 1.4499 UNF-3 INSPECTION - DW12192RD

YOU ARE PURCHASING THE PICTURED THREAD PLUG GAGE.SOLD BY M & J TOOLING LLCDAYTON, OHIO

2 64 NF THREAD PLUG GAGE #2 .086 UNF .0860 GO AND NO GO INSPECTION CHECK - DW12161RD

HEMCO

10 32 NF 3 THREAD PLUG GAGE #10 .190 .1900 GO NO GO P.D.'S = .1697 & .1716 UNF-3 - DW12158RD

YOU ARE PURCHASING THE PICTURED RIGHT HAND THREAD PLUG GAGE.SOLD BY M & J TOOLING LLCDAYTON, OHIO

SWANSON

7/8 9 NC 2 THREAD PLUG GAGE .875 .8750 GO NO GO P.D.'S = .8028 & .8098 UNC-2 - DW12156RD

YOU ARE PURCHASING THE PICTURED THREAD PLUG GAGE.SOLD BY M & J TOOLING LLCDAYTON, OHIO

AGMACO

1/4 28 NF 2 THREAD PLUG GAGE .25 .250 GO NO GO P.D.'S = .2268 & .2299 UNF-2 - DW12133RD

YOU ARE PURCHASING THE PICTURED RIGHT HAND THREAD PLUG GAGE.SOLD BY M & J TOOLING LLCDAYTON, OHIO

SHEFFIELD

1/4 28 NF 3 THREAD PLUG GAGE .25 .250 GO NO GO P.D.'S = .2268 & .2290 UNF-3 - DW12138RD

YOU ARE PURCHASING THE PICTURED RIGHT HAND THREAD PLUG GAGE.SOLD BY M & J TOOLING LLCDAYTON, OHIO
