Working Plug Gages for Checking Threaded Holes

SCC

0 80 UNF 2B THREAD PLUG GAGE #0 .060 NO GO ONLY P.D. = .0542 NF-2B INSPECTION - DW5139BU

YOU ARE PURCHASING THE PICTURED THREAD PLUG GAGE.SOLD BY M & J TOOLING LLCDAYTON, OHIO

1.114 24 UNS 2B THREAD PLUG GAGE GO NO GO P.D.'S = 1.0869 & 1.0924 NS-2B 1.1140 - DW5148BU

YOU ARE PURCHASING THE PICTURED THREAD PLUG GAGE.SOLD BY M & J TOOLING LLCDAYTON, OHIO

HURON

1.0270 32 UNS 2B THREAD PLUG GAGE 1.27 GO NO GO P.D.'S = 1.0050 & 1.0099 NS-2B - DW5091RD

YOU ARE PURCHASING THE PICTURED THREAD PLUG GAGE.SOLD BY M & J TOOLING LLCDAYTON, OHIO

HEMCO

9/16 18 UNF 2B SPECIAL PREPLATE THREAD PLUG GAGE .5625 GO NO GO = .5276 & .5335 - DW5122RD

YOU ARE PURCHASING THE PICTURED SPECIAL PREPLATE THREAD PLUG GAGE.SOLD BY M & J TOOLING LLCDAYTON, OHIO<

4 1/2 8 N-BUTT 1 BUTTRESS BEFORE PLATE THREAD PLUG GAGE 4.5 NO GO P.D. = 4.4463 - DW5102RD

YOU ARE PURCHASING THE PICTURED BUTTRESS BEFORE PLATE THREAD PLUG GAGE.SOLD BY M & J TOOLING LLCDAYTON, OHIO

VERMONT GAGE

9/16 18 UNF 2B VERMONT THREAD PLUG GAGE .5625 GO NO GO P.D.'S = .5264 & .5323 - DW5095RD

YOU ARE PURCHASING THE PICTURED RIGHT HAND THREAD PLUG GAGE.SOLD BY M & J TOOLING LLCDAYTON, OHIO

VERMONT GAGE

1 15/16 12 UNJ 3B PREPLATE VERMONT THREAD PLUG GAGE 1.9375 GO ONLY P.D. = 1.8854 - DW5023RD

YOU ARE PURCHASING THE PICTURED PREPLATE THREAD PLUG GAGE.SOLD BY M & J TOOLING LLCDAYTON, OHIO

LINCOLN GAGE

3/4 10 UNC 3B THREAD PLUG GAGE .75 .750 .7500 GO NO GO P.D.'S = .6850 & .6907 - DW5019RD

YOU ARE PURCHASING THE PICTURED RIGHT HAND THREAD PLUG GAGE.SOLD BY M & J TOOLING LLCDAYTON, OHIO

0.6 40 NS 3 THREAD PLUG GAGE .6 NO GO ONLY P.D. = .5808 UNS-3 .6"-40 INSPECTION - DW5072BU

YOU ARE PURCHASING THE PICTURED THREAD PLUG GAGE.SOLD BY M & J TOOLING LLCDAYTON, OHIO

SCHRILLO

5 1/4 10 NA SPL SPECIAL ACME THREAD PLUG GAGE 5.25 GO NO GO PDS= 5.2000 & 5.2060 - DW4993RD

YOU ARE PURCHASING THE PICTURED SPECIAL ACME THREAD PLUG GAGE.SOLD BY M & J TOOLING LLCDAYTON, OHIO

BESLY

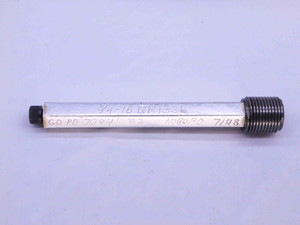

3/4 16 UNF 3B THREAD PLUG GAGE .75 .750 .7500 NO GO ONLY P.D. = .7143 CHECK - DW4978RD

YOU ARE PURCHASING THE PICTURED RIGHT HAND THREAD PLUG GAGE.SOLD BY M & J TOOLING LLCDAYTON, OHIO

LINCOLN GAGE

5/16 32 NEF 2B THREAD PLUG GAGE .3125 GO NO GO P.D.'S = .2922 & .2964 UNEF-2B - DW4979RD

YOU ARE PURCHASING THE PICTURED RIGHT HAND THREAD PLUG GAGE.SOLD BY M & J TOOLING LLCDAYTON, OHIO
