Working Plug Gages for Checking Threaded Holes

11/16 24 2B LEFT HAND THREAD PLUG GAGE .6875 NO GO ONLY P.D. = .6650 L.H. TOOLS

YOU ARE PURCHASING THE PICTURED LEFT HAND THREAD PLUG GAGE.

GTD

5/16 18 USS THREAD PLUG GAGE .3125 GO ONLY P.D. = .2764 INSPECTION TOOL U.S.S.

YOU ARE PURCHASING THE PICTURED https://d3inagkmqs1m6q.cloudfront.net/2423/media/JF0909DSCN0100-0005.JPGTHREAD PLUG GAGE

G.A. CO.

1/4 32 UNEF 2B PREPLATE THREAD PLUG GAGE .25 GO NO GO P.D.'S = .2325 & .2355 B/P

YOU ARE PURCHASING THE PICTURED PREPLATE THREAD PLUG GAGE.

VERMONT

5/16 18 UNC 2A LEFT HAND VERMONT THREAD PLUG GAGE .3125 GO NO GO= .2752 .2712 LH

YOU ARE PURCHASING THE PICTURED LEFT HAND THREAD PLUG GAGE.

SINGER

9/32 20 SS THREAD PLUG GAGE .28125 .281 GO ONLY P.D.= .2503 9/32 X 20 INSPECTION

YOU ARE PURCHASING THE PICTURED THREAD PLUG GAGE.<

SINGER

7/16 20 SS 2 THREAD PLUG GAGE .4375 GO NO GO P.D.'S = .4076 & .4109 CLASS 2 TOOL

YOU ARE PURCHASING THE PICTURED THREAD PLUG GAGE.<

SINGER

3 48 NC 2 THREAD PLUG GAGE #3 .099 GO NO GO P.D.'S = .0855 & .0877 NC-2 TOOLS

YOU ARE PURCHASING THE PICTURED THREAD PLUG GAGE.<

GREENFIELD

3 56 UNF 3B THREAD PLUG GAGE #3 .099 .0990 GO NO GO P.D.'S = .0874 & .0895 CHECK - JF0664BU

YOU ARE PURCHASING THE PICTURED RIGHT HAND THREAD PLUG GAGE.SOLD BY M & J TOOLING LLCDAYTON, OHIO

DOALL

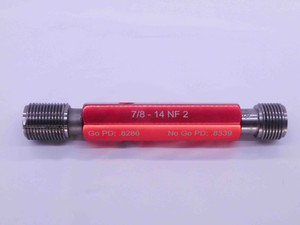

7/8 14 NF 2 THREAD PLUG GAGE .875 .8750 GO NO GO P.D.'S = .8286 & .8339 UNF-2 - DW0415BURL

YOU ARE PURCHASING THE PICTURED RIGHT HAND THREAD PLUG GAGE.SOLD BY M & J TOOLING LLCDAYTON, OHIO

SIZE CONTROL Co.

6 32 NC 2 SPECIAL THREAD PLUG GAGE #6 .138 GO NO GO P.D.'S = .1189 & .1208 6-32

YOU ARE PURCHASING THE PICTURED SPECIAL

ALAMEDA

6 32 UNC SPECIAL THREAD PLUG GAGE #6 .138 GO NO GO P.D.'S = .1195 & .1222 6-32

YOU ARE PURCHASING THE PICTURED SPECIAL

G.A.CO

8 32 UNC 2B SPECIAL THREAD PLUG GAGE #8 .164 GO NO GO P.D.'S =.1456 & .1489 TOOL

YOU ARE PURCHASING THE PICTURED SPECIAL
