WALDEN

WALDEN

.644 32 UN 3B THREAD PLUG GAGE .6440 GO NO GO P.D.'S = .6237 & .6272 INSPECTION - DW25945BK3

WALDEN

1 3/8 14 UNS SPECIAL THREAD RING GAGES 1.375 GO NO GO P.D.'S = 1.3276 & 1.3246 - DW38030CF5

WALDEN

2 1/16 16 UNS 2B THREAD PLUG GAGE 2.0625 GO NO GO P.D.'S = 2.0219 & 2.0289 NS-2B - DW8089BU

WALDEN

2 3/4 10 UNS 2B DOUBLE LEAD SPECIAL THREAD PLUG GAGE 2.75 GO ONLY PD = 2.7160 - DW34865AP5

WALDEN

2" 8 UN 3A MODIFIED THREAD RING GAGES 2.0 2.00 GO NO GO P.D.'S = 1.9188 & 1.9130 - DW37979DG5

WALDEN

3 5/8 12 UN 2B THREAD PLUG GAGE 3.625 3.6250 NO GO ONLY P.D. = 3.5793 CHECK - DW34482LVR

WALDEN

3/4 14 UNS 2A PREPLATE SET THREAD PLUG GAGE .75 GO NO GO P.D.'S = .7005 & .6958 - DW32077OB4

WALDEN

4 1/8 12 UNJ 3B THREAD PLUG GAGE 4.125 4.1250 GO NO GO P.D.'S = 4.0709 & 4.0773 - DW17291AX2

WALDEN

4 3/4 6 UN 2B THREAD PLUG GAGE 4.75 4.750 GO NO GO P.D.'S = 4.6417 & 4.6551 - DW17705BG2

WALDEN

4" 6 NA 2G ACME THREAD PLUG GAGE 4.0 4.00 GO NO GO P.D.'S = 3.9167 & 3.9409 - DW17704BG2

WALDEN

5 15/16 16 UNJ 2B THREAD PLUG GAGE 5.9375 GO ONLY P.D. = 5.8969 2B OR 3B CHECK - DW26120BL3

WALDEN

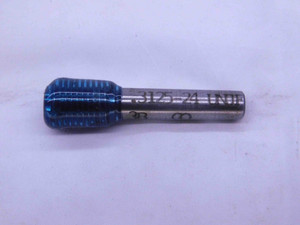

5/16 24 UNJF 3B PREPLATE THREAD PLUG GAGE .3125 GO ONLY P.D. = .2868 3B OR 2B - DW37270SLW
