WD

WD

.240 30 NS 2 THREAD RING GAGE .24 .2400 NO GO ONLY P.D. = .2152 INSPECTION CHECK - DW13967AX1

WD

1/4 28 NF 2 THREAD PLUG GAGE .25 .250 GO NO GO P.D.'S = .2268 & .2299 UNF-2 - DW12133RD

WD

1/4 28 NF 3 THREAD PLUG GAGE .25 .250 GO NO GO P.D.'S = .2268 & .2290 UNF-3 - DW12138RD

WD

1/4 28 NF 3 THREAD PLUG GAGE .25 .250 GO NO GO P.D.'S = .2268 & .2290 UNF-3 - DW19082RD

WD

1/8 50 NS SET THREAD PLUG GAGE #5 .125 .1250 GO ONLY P.D. = .1120 INSPECTION CHECK - DW13945AX1

WD

2 1/2 8 N 3 THREAD PLUG GAGE 2.5 GO NO GO P.D.'S = 2.4188 & 2.4268 2.50 2.500 - DW12499BU

WD

3/32 50 NS SET THREAD PLUG GAGE .09375 GO ONLY P.D. = .0807 INSPECTION CHECK - DW13944AX1

WD

3/8 12 STUB ACME LEFT HAND THREAD RING GAGES .375 GO NO GO P.D.'S= .3233 & .3183

WD

3/8 32 NS 3 THREAD RING GAGE .375 NO GO ONLY P.D. = .3523 UNS-3 3/8"-32 TOOL

WD

5/16 18 NC 2 LEFT HAND THREAD RING GAGE .3125 NO GO ONLY PD = .2723 UNC-3A L.H. - DW12697LVR

WD

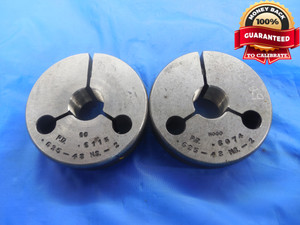

5/8 48 NS 2 THREAD RING GAGES .625 GO NO GO P.D.'S = .6115 & .6074 UNS-2 TOOL

WD

6 32 NC 3 THREAD PLUG GAGE #6 .138 .1380 GO NO GO P.D.'S = .1177 & .1196 UNC-3 - DW23938RD
