WEDIN

WEDIN

4 48 NS SPECIAL THREAD PLUG GAGE #4 .112 .1120 GO ONLY P.D. = .0970 INSPECTION - DW36545SLW

WEDIN

4 9/16 10 BUTTRESS SET THREAD PLUG GAGE 4.5625 GO NO GO P.D.'S = 4.496 & 4.493 - DW27951RD

WEDIN

4 9/16 10 BUTTRESS THREAD RING GAGE 4.5625 NO GO ONLY P.D. = 4.493 INSPECTION - DW4560RD

WEDIN

4" 8 NS LEFT HAND THREAD PLUG GAGE 4.0 GO ONLY P.D. = 3.9188 L.H. UN 2B OR 3B - DW31931CB4

WEDIN

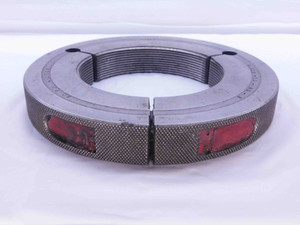

4.325 12 NS 3 AN22 LOCKNUT THREAD RING GAGE GO ONLY P.D. = 4.2709 AN 22 3A - DW42380AC6

WEDIN

5" 16 UN 3A THREAD RING GAGE 5.0 5.00 5.000 5.0000 NO GO ONLY P.D. = 4.9549 - DW15898RD

WEDIN

5/8 32 NS 3A SET THREAD PLUG GAGE .625 .6250 GO ONLY P.D. = .6047 FULL FORM - DW27350RD

WEDIN

7/16 20 NF 2 BEFORE PLATE THREAD RING GAGE .4375 GO ONLY P.D. = .4025 UNF-2

WEDIN

7/16 20 NF 3 THREAD PLUG GAGE .4375 GO NO GO P.D.'S = .4050 & .4076 UNF-3 CHECK - DW13419RD

WEDIN

7/8 20 NEF 3 THREAD PLUG GAGE .875 .8750 GO NO GO P.D.'S = .8425 & .8458 UNEF-3 - DW24097RD

WEDIN

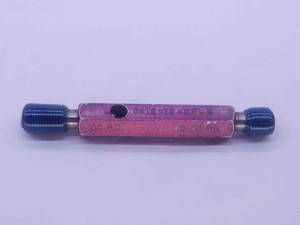

9/16 18 NF 4 THREAD PLUG GAGE .5625 GO NO GO P.D.'S = .5264 & .5279 UNF-4 CHECK - DW35651BX5

WEDIN

BUDGET 3.73 12 NS AN19 LOCKNUT THREAD RING GAGE GO ONLY PD = 3.6760 AN 19 CHECK - DW42368AC6
