MASTER GAGE

MASTER GAGE

.840 18 UNS 2 THREAD RING GAGE .84 .8400 GO ONLY P.D. = .8021 INSPECTION - DW25634BF3

MASTER GAGE

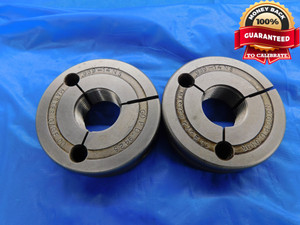

.989 14 NS THREAD RING GAGES GO NO GO P.D.'S = .9425 & .9395 .9890 INSPECTION - DW10554RD

MASTER GAGE

1 1/2 11 1/2 NPSM PIPE THREAD PLUG GAGE 1.5 GO NO GO P.D.'S = 1.8223 & 1.8302 2B - DW30912BK4

MASTER GAGE

1 1/8 12 UNF 2B THREAD PLUG GAGE 1.125 1.1250 GO NO GO P.D.'S = 1.0709 & 1.0787 - DW5597BU

MASTER GAGE

1 1/8 16 UN 2A THREAD RING GAGES 1.125 1.1250 GO NO GO P.D.'S = 1.0829 & 1.0779 - DW31719CC4

MASTER GAGE

1 1/8 18 NEF LEFT HAND THREAD PLUG GAGE 1.125 GO ONLY P.D. = 1.0889 2B 3B CHECK - DW2987BU

MASTER GAGE

1 31/32 20 UNS 3B THREAD PLUG GAGE 1.96875 GO NO GO P.D.'S = 1.9362 & 1.9410

MASTER GAGE

1 5/8 8 UN 2A SET THREAD PLUG GAGE 1.625 GO NO GO P.D.'S = 1.5416 & 1.5342 CHECK - DW36509SLW

MASTER GAGE

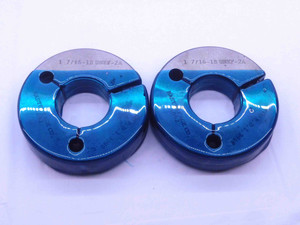

1 7/16 18 UNEF 2A THREAD RING GAGES 1.4375 GO NO GO P.D.'S = 1.3999 & 1.3949 - DW3566BU

MASTER GAGE

1 9/16 8 UN 2A SET THREAD PLUG GAGE 1.5625 GO NO GO P.D.'S = 1.4792 & 1.4721 - DW37954SLW

MASTER GAGE

1" 14 UNJS 3B THREAD PLUG GAGE 1.0 1.00 1.000 GO NO GO P.D.'S = .9536 & .9590 - DW19667LVR

MASTER GAGE

1" 14 UNS 2A THREAD RING GAGE 1.0 1.00 1.000 1.0000 GO ONLY P.D. = .9519 CHECK - AY0129BURL
