MASTER GAGE

MASTER GAGE

2 1/2 4 NC 2 SET THREAD PLUG GAGE 2.5 4.0 NO GO ONLY P.D. = 2.3236 INSPECTION - DW13813RD

MASTER GAGE

2 1/4 16 N 3 THREAD PLUG GAGE 2.25 2.250 2.2500 NO GO ONLY P.D. = 2.2050 CHECK - DW15692RD

MASTER GAGE

2 3/8 12 UN 3A SET THREAD PLUG GAGE 2.375 GO ONLY P.D. = 2.3209 N-3A 2 3/8-12 - DW8305BU

MASTER GAGE

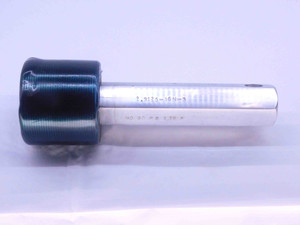

2 5/16 16 N 3 SET THREAD PLUG GAGE 2.3125 NO GO ONLY P.D. = 2.2675 INSPECTION - DW32478LVR

MASTER GAGE

2 64 UNF 2A THREAD RING GAGES #2 .086 .0860 GO NO GO P.D.'S = .0753 & .0736 - DW27912RD

MASTER GAGE

3 1/8 8 NS 2A THREAD RING GAGE 3.125 3.1250 GO ONLY P.D. = 3.0415 INSPECTION - DW16937AW2

MASTER GAGE

3 56 UNF 2A THREAD RING GAGES #3 .099 .0990 GO NO GO P.D.'S = .0867 & .0845 - DW2633RD

MASTER GAGE

3/4 20 UNEF 3B THREAD PLUG GAGE .75 .750 .7500 NO GO ONLY P.D. = .7218 CHECK - DW27586RD

MASTER GAGE

3/8 16 CATSTUD THREAD PLUG GAGE .375 GO NO GO P.D.'S = .3324 & .3355 SPECIAL

MASTER GAGE

3/8 24 UNJF 3A THREAD RING GAGE .375 .3750 GO ONLY P.D. = .3479 INSPECTION CHECK - DW38986OB6

MASTER GAGE

3/8 32 UNEF 2A THREAD RING GAGES .375 .3750 GO NO GO P.D.'S = .3537 & .3503 - DW3947RD

MASTER GAGE

4" 12 UN 2A LEFT HAND THREAD RING GAGES 4.0 GO NO GO P.D.'S = 3.9439 & 3.9374 - DW16844AW2
