WINTER

WINTER

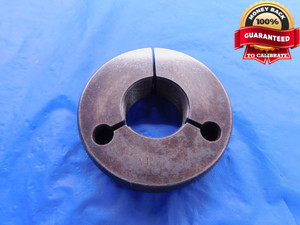

1 1/8 20 NS 2 THREAD RING GAGE 1.125 NO GO ONLY P.D. = 1.0873 1.1250 INSPECTION - DW12696LVR

WINTER

1" 8 UNC 1A SET THREAD PLUG GAGE 1.0 1.00 1.000 1.0000 GO ONLY P.D. = .9168 2A - DW41049LVR

WINTER

1.628 36 NS THREAD RING GAGES 1.6280 GO NO GO P.D.'S = 1.6098 & 1.6080 CHECK - DW18518RD

WINTER

1/16 27 ANPT 6 STEP PIPE THREAD RING GAGE .0625 1/16"-27 INSPECTION TOOL - DW4208RD

WINTER

1/2 13 UNC 3A SET THREAD PLUG GAGE .5 .50 .500 .5000 NO GO ONLY P.D. = .4463 - DW42012AA6

WINTER

1/2 14 ANPT L1 & L3 PIPE THREAD PLUG GAGE .5 .50 .500 .5000 A.N.P.T. 3 STEP (L1) - DW18708RD

WINTER

1/8 27 ANPT 6 STEP PIPE THREAD RING GAGE .125 .1250 A.N.P.T. NPT CREST CHECK - DW30516BJ4

WINTER

1/8 27 ANPT L3 & 6 STEP PIPE THREAD PLUG GAGE .125 .1250 A.N.P.T. AERONAUTICAL - DW42024BG6

WINTER

13/32 16 UNS 2B THREAD PLUG GAGE .40625 .4062 GO NO GO P.D.'S = .3657 & .3722

WINTER

2 1/2 16 N 3 SET THREAD PLUG GAGE 2.5 2.50 2.500 2.5000 NO GO ONLY P.D. = 2.4549 - DW41990LVR

WINTER

2 5/8 16 UN 3B LEFT HAND THREAD PLUG GAGE 2.625 GO NO GO PDS= 2.5844 & 2.5898 LH

WINTER

3/4 14 ANPT 6 STEP PIPE THREAD RING GAGE .75 .750 .7500 NPT CREST CHECK - DW27192AP4
